All stock codes associated to this product
SV431USB, 2902543, 0065030787192
| Performance |
|---|
| Maximum cable length | 5 m |
| Daisy chain | No |
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Video |
|---|
| Maximum resolution | 1920 x 1440 pixels |
| Ports & interfaces |
|---|
| Console USB ports quantity | 4 |
| Console ports | USB A, VGA (D-Sub) |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| DC-in jack | Yes |
| Design |
|---|
| Mean time between failures (MTBF) | 82506 h |
| Maximum cable length | 5 m |
| Product colour | Black |
| Rack mounting | Yes |
| Hot keys | No |
| Certification | CE, FCC, REACH, TAA, cUR |
| Rack capacity | 1U |
| Housing material | Steel |
| Display |
|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power |
|---|
| Input current | 0.4 A |
| Output current | 2 A |
| Power plug type | Type N |
| Output voltage | 5 V |
| AC input voltage | 110-240 V |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Weight & dimensions |
|---|
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 988 g |
| Package width | 196 mm |
| Package depth | 295 mm |
| Package height | 72 mm |
| Package weight | 1.3 kg |
| Packaging data |
|---|
| Package width | 196 mm |
| Package depth | 295 mm |
| Package height | 72 mm |
| Package weight | 1.3 kg |
| Packaging content |
|---|
| Rubber feet | Yes |
| Manual | Yes |
| Certificates |
|---|
| Certification | CE, FCC, REACH, TAA, cUR |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176200 |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Other features |
|---|
| Hot keys | No |
| IP control | No |
Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

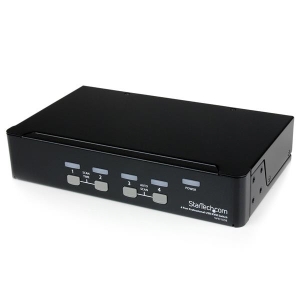

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
