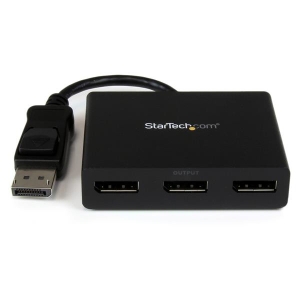

MSTDP123DP | Startech 3-Port Multi Monitor Adapter - DisplayPort 1.2 MST

Ports & interfaces
Video ports quantity	3
Video port type	DisplayPort
Video out	3x DisplayPort
Cable length	0.19 m
Features
Housing material	Plastic
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Plug and Play	Yes
Product colour	Black
Certification	ROHS
Cable length	0.19 m
Power
Input current	0.5 A
Output current	3 A
Power consumption (typical)	15 W
Output voltage	5 V
AC input voltage	110 - 240 V
Weight & dimensions
Weight	99 g
Width	78 mm
Depth	386 mm
Height	20 mm
Package weight	409 g
Package depth	155 mm
Package width	229 mm
Package height	55 mm
Packaging data
Package weight	409 g
Package depth	155 mm
Package width	229 mm
Package height	55 mm
Packaging content
AC adapter included	Yes
Included power plug types	AU, EU, NA, UK
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 45  Â°C
Storage temperature (T-T)	-20 - 70  Â°C
Sustainability
Sustainability certificates	RoHS
Colour
Product colour	Black
Certificates
Certification	ROHS
Technical details
Housing material	Plastic
Video out	3x DisplayPort
Plug and Play	Yes
Package width	229 mm
Package height	55 mm
Sustainability certificates	RoHS
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Logistics data
Master (outer) case width	340 mm
Master (outer) case length	500 mm
Master (outer) case height	230 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990

---

Use this adapter to connect three independent displays to a single DP 1.2 portThis MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows Â® laptop or desktop.Increase productivity with multiple screensThe newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.Connect to any displayWith the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.Configure your displays for any environmentUsing the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.Enjoy amazing video quality, without draining system resourcesMST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.Average Resolution Bandwidth Allocation1920x1080 (High-definition 1080p) @60hz - 22%1920x1200 @60hz - 30%2560x1440 @60hz - 35%2560x1600 @60hz - 38%3840 x 2160 (Ultra HD 4K) @30hz - 38%Note: Exceeding 100% will reduce functionality.Examples of Supported Resolution ConfigurationsScreen 1 ResolutionScreen 2 ResolutionScreen 3 ResolutionTotal % of Bandwidth1920x1200 @60hz (30%)1920x1200 @60hz (30%)1920x1200 @60hz (30%)90%2560x1440 @60hz (35%)2560x1440 @60hz (35%)1920x1200 @60hz (30%)100%2560x1600 @60hz (38%)2560x1600 @60hz (38%)1920x1080 @60hz (22%)98%3840x2160 @30hz (38%)2560x1600 @60hz (38%)1920x1080 @60hz (22%)98%3840x2160 @30hz (38%)3840x2160 @30hz (38%)1920x1080 @60hz (22%)98%Examples of Unsupported Resolution ConfigurationsScreen 1 ResolutionScreen 2 ResolutionScreen 3 ResolutionTotal % of Bandwidth2560x1600 @60hz (38%)2560x1600 @60hz (38%)1920x1200 @60hz (30%)106%3840x2160 @30hz (38%)2560x1600 @60hz (38%)1920x1200 @60hz (30%)106%3840x2160 @30hz (38%)2560x1600 @60hz (38%)2560x1440 @60hz (35%)111%3840x2160 @30hz (38%)3840x2160 @30hz (38%)3840x2160 @30hz (38%)114%The StarTech.com Advantage
