All stock codes associated to this product
USB32VGAV, 2901891, 0065030860833
| Performance |
|---|
| USB connector type | USB Type-A |
| USB connector gender | Male |
| VGA (D-Sub) output | Yes |
| Internal memory | 8 MB |
| Supported video modes | 480p, 720p, 1080p |
| Supported graphics resolutions | 1280 x 800, 1280 x 960, 1600 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 800 x 600 (SVGA) |
| USB pass-through | No |
| Chipset | Fresco - FL2000DX |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| Maximum resolution | 1920 x 1200 pixels |
| Output colour depth | 16/32 bit |
| Certification | FCC, CE, REACH |
| Design |
|---|
| Product colour | Black |
| Integrated USB cable | Yes |
| USB cable length | 0.139 m |
| System requirements |
|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 4 GB |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Weight & dimensions |
|---|
| Width | 25 mm |
| Depth | 195 mm |
| Height | 12 mm |
| Weight | 9.3 g |
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 92 g |
| Packaging content |
|---|
| Quick installation guide | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Logistics data |
|---|
| Harmonized System (HS) code | 84733020 |

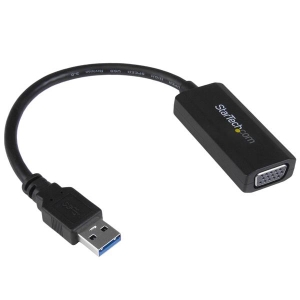

USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows
This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.
Save time and hassle with on-board driver installation
For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.
Increase your productivity by connecting an additional display
Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.
USB 3.0 performance for business applications
Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.
The USB32VGAV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Simplify installation while you're on the go, with on-board memory enabling you to install the adapter without a CD-ROM drive or Internet connection
- Increase productivity by connecting an additional display to your Ultrabook or laptop workstation
