All stock codes associated to this product
SV431DPDDUA2, 4157163, 0065030867863
| Video |
|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Ports & interfaces |
|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type | USB Type-A |
| DisplayPorts quantity | 10 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DC-in jack | Yes |
| USB hub | Yes |
| Performance |
|---|
| Daisy chain | No |
| Data transfer rate (max) | 0.5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Design |
|---|
| Mean time between failures (MTBF) | 142000 h |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Power |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Rack capacity | 2U |
| Housing material | Steel |
| Display |
|---|
| Built-in display | No |
| Power |
|---|
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
| Output voltage | 12 V |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Technical details |
|---|
| USB hub | Yes |
| Sustainability certificates | RoHS |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions |
|---|
| Width | 216 mm |
| Depth | 127 mm |
| Height | 63 mm |
| Weight | 1.2 kg |
| Package width | 243 mm |
| Package depth | 297 mm |
| Package height | 87 mm |
| Package weight | 1.8 kg |
| Packaging data |
|---|
| Package width | 243 mm |
| Package depth | 297 mm |
| Package height | 87 mm |
| Package weight | 1.8 kg |
| Packaging content |
|---|
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Certificates |
|---|
| Certification | CE, FCC, TAA, REACH |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176200 |
| Other features |
|---|
| Hot keys | Yes |
| IP control | No |
| Audio support | Yes |

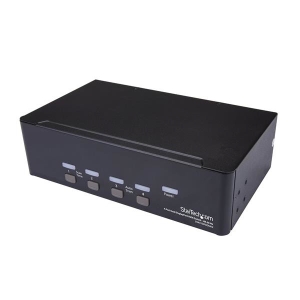

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP Â systems.
Maximize productivity with dual video
With two DP  video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP  ports supports resolutions up to 4K 60Hz, for  maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker  ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
