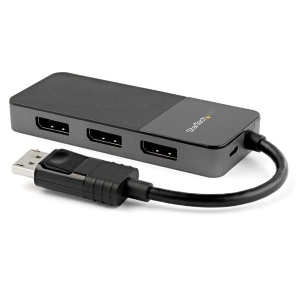

MST14DP123DP | Startech 3 Port Multi Monitor Adapter - DisplayPort 1.4 to

Ports & interfaces
Video ports quantity	3
Video port type	DisplayPort
Video out	3x DisplayPort
Features
Housing material	Plastic
Maximum refresh rate	30 Hz
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution	7680 x 4320 pixels
Product colour	Black, Grey
Certification	CE, FCC, REACH
HD type	8K Ultra HD
Power
USB powered	Yes
Weight & dimensions
Weight	55 g
Width	105 mm
Depth	43 mm
Height	14 mm
Package weight	132 g
Package depth	170 mm
Package width	142 mm
Package height	30 mm
Packaging data
Package weight	132 g
Package depth	170 mm
Package width	142 mm
Package height	30 mm
Packaging content
Cables included	Micro-USB
Operational conditions
Operating temperature (T-T)	-20 - 60  Â°C
Storage temperature (T-T)	-20 - 80  Â°C
Operating relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	RoHS
Video
Maximum refresh rate	30 Hz
Maximum resolution	7680 x 4320 pixels
Colour
Product colour	Black, Grey
Certificates
Certification	CE, FCC, REACH
Technical details
Housing material	Plastic
Maximum cable length	2 m
Video out	3x DisplayPort
Package width	142 mm
Package height	30 mm
Sustainability certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Logistics data
Master (outer) case width	331 mm
Master (outer) case length	470 mm
Master (outer) case height	418 mm
Products per master (outer) case	70 pc(s)
Harmonized System (HS) code	85176990

---

3 x 4K | Multi-Monitor Video Splitter | Windows Â® | HDRThis 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.Incredible Picture QualitySupporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you’re in the office, at home or traveling.Display 1Display 2Display 38K (7680x4320) @ 30HzXX5K (5120x2880) @ 60Hz1080p (1920x1080) @ 30HzX4K (3840x2160) @ 60Hz4K (3840x2160) @ 30Hz4K (3840x2160) @ 30Hz2K (2560x1600) @ 60Hz2K (2560x1600) @ 60Hz2K (2560x1600) @ 60Hz1080p (1920x1080) @ 60Hz1080p (1920x1080) @ 60Hz1080p (1920x1080) @ 60HzBoth your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).Lower resolutions and refresh rates may also be supported.Multi-Tasking Made EasyThis DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.Hassle-Free SetupMulti-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.MST14DP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.The StarTech.com Advantage
