DESCRIPTION

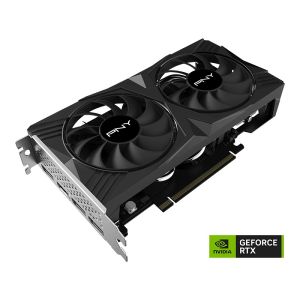

PNY GeForce RTXâ„¢ 4060 8GB VERTOâ„¢ Dual Fan DLSS 3
Overview
NVIDIA®
GeForce RTXâ„¢ 40 Series GPUs are beyond fast for gamers and creators.
They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture
which delivers a quantum leap in both performance and AI-powered
graphics. Experience lifelike virtual worlds with ray tracing and
ultra-high FPS gaming with the lowest latency. Discover revolutionary
new ways to create and unprecedented workflow acceleration.
KEY FEATURES
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
Dedicated Ray Tracing Cores
Dedicated Tensor Cores
NVIDIA DLSS 3
Game Ready and NVIDIA Studio Drivers
NVIDIA® GeForce Experience™
NVIDIA Broadcast
NVIDIA G-SYNC®
NVIDIA GPU Boostâ„¢
PCI Express® Gen 4
Microsoft DirectX® 12 Ultimate
Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6
HDCP 2.3
DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR
As specified in HDMI 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR
MINIMUM SYSTEM REQUIREMENTS
PCI Express-compliant motherboard with one dual width x16 graphics slot (x8 active)
One 8-pin supplementary power connectors
550 W or greater system power supply2
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection
Product Specifications
PNY Part Number VCG40608DFXPB1
UPC Code 751492778006
CUDA Cores 3072
Clock Speed 1830 MHz
Boost Speed 2460 MHz
Memory Speed (Gbps) 17
Memory Size 8GB GDDR6
Memory Interface 128-bit
Memory Bandwidth (GB/sec) 272
TDP 115 W
NVLink Not Supported
Outputs DisplayPort 1.4a (x3), HDMI 2.1
Multi-Screen 4
Resolution 7680 x 4320 @120Hz (Digital)3
Power Input One 8-pin
Bus Type PCI-Express 4.0 x16 (x8 active)
Card Dimensions 8.27" x 4.53" x 1.57"; Dual Slot
Box Dimensions 12.64" x 7.13" x 2.6"
