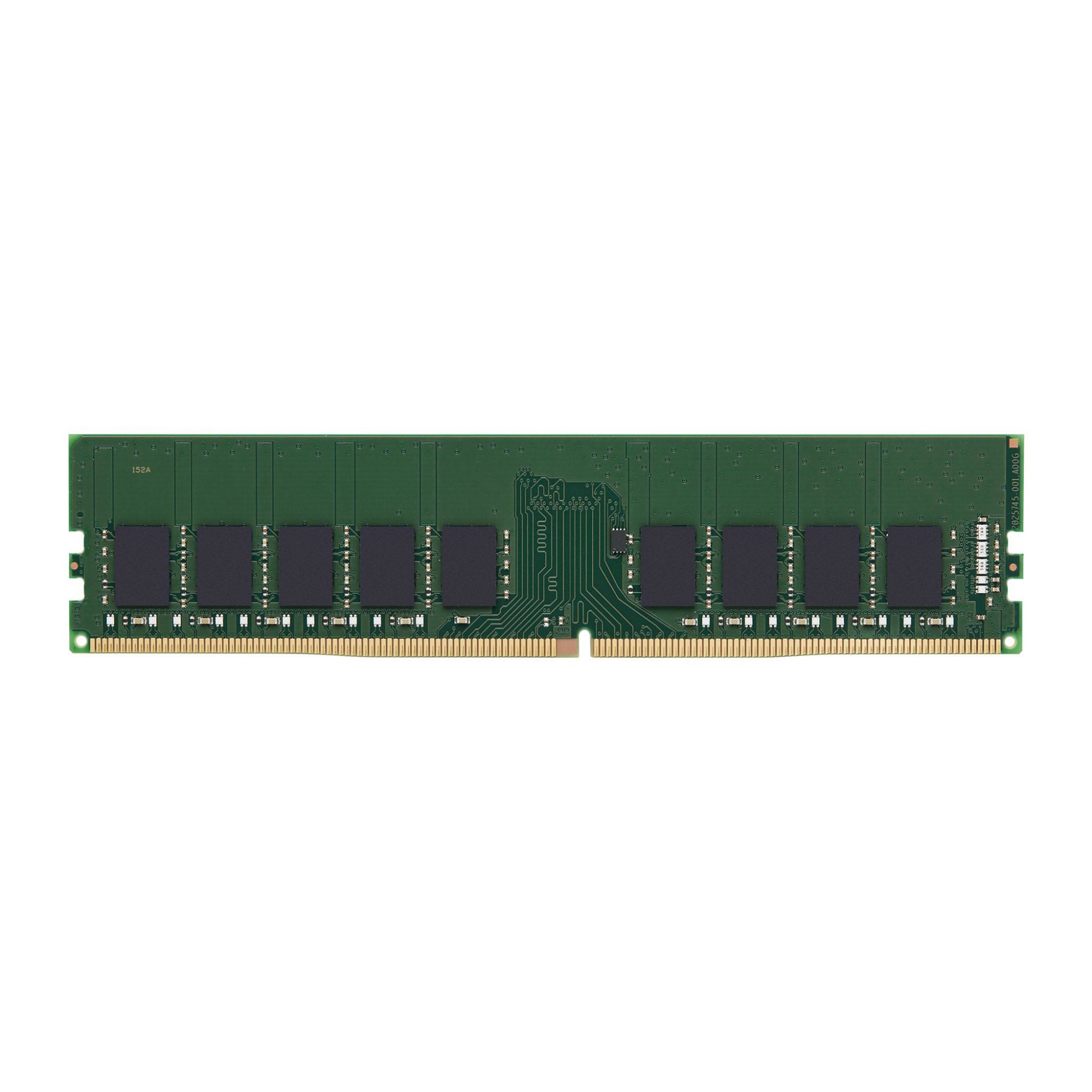

Kingston KSM32ED8/32HC 32GB 3200MHz DDR4 ECC CL22 DIMM 2Rx8 Hynix C Memory Module

IMG 1 of 1
Our Price:
$238.25
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
531592
(?) Brand:
Kingston Web Site
Manuf No:
KSM32ED8/32HC
Shipping Weight:
0.1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
KSM32ED8/32HC, 0740617325287

Kingston Technology KSM32ED8/32HC memory module 32 GB DDR4 3200 MHz ECC

Manufacturer: Kingston Technology
Category: Computer Components
Sub-Category: Memory Modules
SKU: KSM32ED8/32HC
EAN: 0740617325287

Description

Kingston's KSM32ED8/32HC is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Design
BacklightNo
JEDEC standardYes
Memory
Buffered memory typeUnregistered (unbuffered)
Internal memory32 GB
Internal memory typeDDR4
Memory clock speed3200 MHz
Component forPC/Server
ECCYes
Memory form factor288-pin DIMM
CAS latency22
Memory voltage1.2 V
Module configuration4096M x 72
Row cycle time45.75 ns
Refresh row cycle time350 ns
Row active time32 ns
SPD profileYes
Memory ranking2
Programming power voltage (VPP)2.5 V
Features
On-Die ECCYes
Buffered memory typeUnregistered (unbuffered)
Internal memory32 GB
Internal memory typeDDR4
Memory clock speed3200 MHz
Component forPC/Server
ECCYes
BacklightNo
Memory form factor288-pin DIMM
CAS latency22
Memory voltage1.2 V
Module configuration4096M x 72
Row cycle time45.75 ns
Refresh row cycle time350 ns
Row active time32 ns
SPD profileYes
Memory ranking2
Programming power voltage (VPP)2.5 V
JEDEC standardYes
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-55 - 100 °C
Technical details
Harmonized System (HS) code84733020
Sustainability certificatesRoHS
Weight & dimensions
Height31.2 mm
Other features
Harmonized System (HS) code84733020
