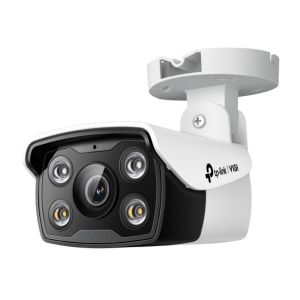

TP-Link VIGI C340 VIGI 4MP Outdoor Full-Color Bullet Network Camera -
2.8mm
Overview
- 4MP High Definition: The camera comes with 4MPmore than enough pixels to
pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black
conditions, via high-sensitivity sensor and included spotlight
LEDs.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (human detection, motion detection, area intrusion,
line-crossing, video tampering): Receive notifications and check feeds when
someone crosses a boundary, enters an area you've set, or obstructs the
camera.
- H.265+: Without using any extra bandwidth, your cameras transmit
compressed crystal-clear video to save disk space, ease network loads, and
reduce monitoring costs without sacrificing image quality.
- PoE/12V DC: Two power supply ways not only give you more convenience but
also make your wiring remarkably easy.
- VIGI App: Manage your security from the palm of your hand with the VIGI
app.
Specifications
|
NETWORK |
|
Security |
Password Protection,
HTTPS Encryption, IP Address Filter, Digest
Authentication |
|
Protocol |
TCP/IP, UDP, ICMP,
HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|
API |
ONVIF |
|
Simultaneous Live
View |
3 Main Streams & 3
Sub-Streams |
|
GENERAL |
|
Package
Contents |
VIGI Network
Camera |
|
Quick Start
Guide |
|
Waterproof Cable
Attachments |
|
Mounting Accessories
(Screws, Drywall Anchors, Hex Key) |
|
Operating
Temperature |
-3060
C |
|
Certifications |
CE, RCM, BSMI, VCCI,
RoHS, NTRA, KC |
|
Dimensions( H X W X D
) |
78 x 70 x 174
mm |
|
Material |
Plastic |
|
Weight |
195g |
|
General
Features |
Two Streams, Mirror,
Privacy Masks, Password Reset via E-mail, HTTP
Listening |
|
Power
Requirements |
12V DC 5%, 5.5mm
Coaxial Power Plug |
|
PoE (802.3af/at, class
0) |
|
CAMERA |
|
Sensor |
1/3" Progressive Scan
CMOS |
|
Lens |
Fixed focal lens (2.8
mm / 4 mm / 6 mm) |
|
Aperture |
2.8 mm:
F1.6 |
|
4 mm:
F1.6 |
|
6 mm:
F1.6 |
|
Lens
Mount |
M12 |
|
Viewing
Angle |
(2.8mm) Horizontal FOV:
102, Vertical FOV: 55, Diagonal FOV:
122 |
|
Day/Night
Mechanism |
IR Cut
Filter |
|
IR Working
Distance |
30m |
|
Illumination
Distance |
30
m |
|
Minimum
Illumination |
0 lux with IR/white
Light |
|
Weatherproof
Rating |
IP66 |
|
Digital Noise
Reduction |
3D
DNR |
|
WDR |
DWDR |
|
VIDEO/IMAGE |
|
Video
Compression |
Main stream:
H.265+/H.265/H.264+//H.264 |
|
Sub-Stream:
H.265/H.264 |
|
Frame Rate &
Resolutions |
Main
Stream |
|
Frame Rate: 1fps, 5fps,
10fps, 15fps, 20fps, 25fps, 30fps |
|
Resolution: 2560x1440,
2304x1296, 2048x1280, 1920x1080 |
|
Sub-Stream |
|
Frame Rate: 1fps, 5fps,
10fps, 15fps, 20fps, 25fps, 30fps |
|
Resolution: 640x480,
352x288, 320x240 |
|
Video
Streaming |
Main
Stream |
|
Sub-Stream |
|
Settings |
Mirror, Brightness,
Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable
by Client Software |
|
Enhancement |
BLC/3D DNR/Prevent
Overexposure to Infrared Light |
|
Video Bit
Rate |
Main Stream: 256 Kbps
to 4 Mbps |
|
Sub-Stream: 64 Kbps to
512 Kbps |
|
SMART
FEATURE-SET |
|
Smart
Event |
Area Intrusion
Detection, Line-Crossing Detection, Human Detection |
|
Basic
Event |
Motion Detection,
Camera Tampering Detection, Exception ( illegal
login) |
|
Linkage
Method |
Trigger Notification:
ONVIF, HTTPS |
|
Region of
Interest |
1
Region |
|
INTERFACES |
|
Network
Interface |
1 RJ45 10/100M
Self-Adaptive Ethernet Port |
|
Audio
Input |
Built-in
Microphone |
|
Audio
Output |
Built-in
Speaker |
|
Button |
Reset
Button |
|
Slot |
Micro SD
card |
