All stock codes associated to this product
952000088, 952-000088, 5321219, 0097855169976
| Display |
|---|
| Display diagonal | 25.6 cm (10.1") |
| Display type | IPS |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 400 cd/m ² |
| Touchscreen technology | Capacitive |
| Backlight type | LED |
| Contrast ratio | 1000:1 |
| Viewing angle, horizontal | 85 ° |
| Viewing angle, vertical | 85 ° |
| Oleophobic coating | Yes |
| Fingerprint resistant | Yes |
| Number of simultaneous touchpoints | 10 |
| Audio |
|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Performance |
|---|
| Purpose | Meeting room |
| Mounting type | In tabletop |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Product colour | White |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Motion sensor technology | Passive infrared (PIR) sensor |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Ambient light sensor | Yes |
| Security algorithms | 128-bit AES |
| Networking standards | IEEE 802.3af |
| Cable lock slot | Yes |
| Ports & interfaces |
|---|
| RJ-45 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Power |
|---|
| Power source type | PoE |
| Operational conditions |
|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions |
|---|
| Width | 246.2 mm |
| Depth | 171.3 mm |
| Height | 56.1 mm |
| Weight | 1 kg |
| Package width | 247 mm |
| Package weight | 1.5 kg |
| Package height | 93 mm |
| Package depth | 346 mm |
| Packaging content |
|---|
| Microfiber cleaning cloth | Yes |
| Screws included | Yes |
| Quantity | 1 |
| Packaging content | Tap IP Touch Controller VESA Mounting Screws (x4) Microfiber Cloth Documentation |
| Logistics data |
|---|
| Master (outer) case width | 260 mm |
| Master (outer) case gross weight | 3.3 kg |
| Master (outer) case length | 358 mm |
| Master (outer) case height | 199 mm |

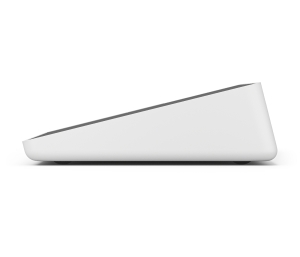

Logitech TAP IP Make video meetings simple to join with a network-connected touch controller.
DEPLOY ROOM SOLUTIONS WITH EASE Transform collaboration spaces with Logitech Tap IP and leading video conferencing room solutions. Deliver one-touch join, easy content-sharing, and a seamless meeting experience across all rooms.
CLEAN AND CONVENIENT SETUP Just the Right Presence With a spacious 10.1" display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.
Simple and Secure Cabling Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.
Multiple Mounting Options Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180 ° for visibility and convenience. Or save table space in small rooms with the Wall Mount.
SINGLE CABLE SIMPLICITY With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.
PAIRS WELL WITH PARTNERS Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.
SIMPLE TO MANAGE WITH LOGITECH SYNC With Logitech Sync, you can monitor and manage Tap IP along with your other meeting room devices from one single platform.
AN ALL-IN-ONE SERVICE PLAN Logitech Select is a comprehensive service plan that delivers reliability, continuity, and peace of mind for each room you designate. Select provides 24/7 support, a dedicated Customer Success Manager, accelerated RMA, onsite spares, and advanced Sync analytics including customizable alerts through ServiceNow integration.
UP TO FIVE YEAR WARRANTY Purchasing an extended warranty offers security and peace of mind that comes with knowing your Logitech video collaboration room systems and devices are protected against defects for up to five years from the purchase date. Extended warranties are available for either one year or three years beyond the original Logitech manufacturer’s two-year warranty.
