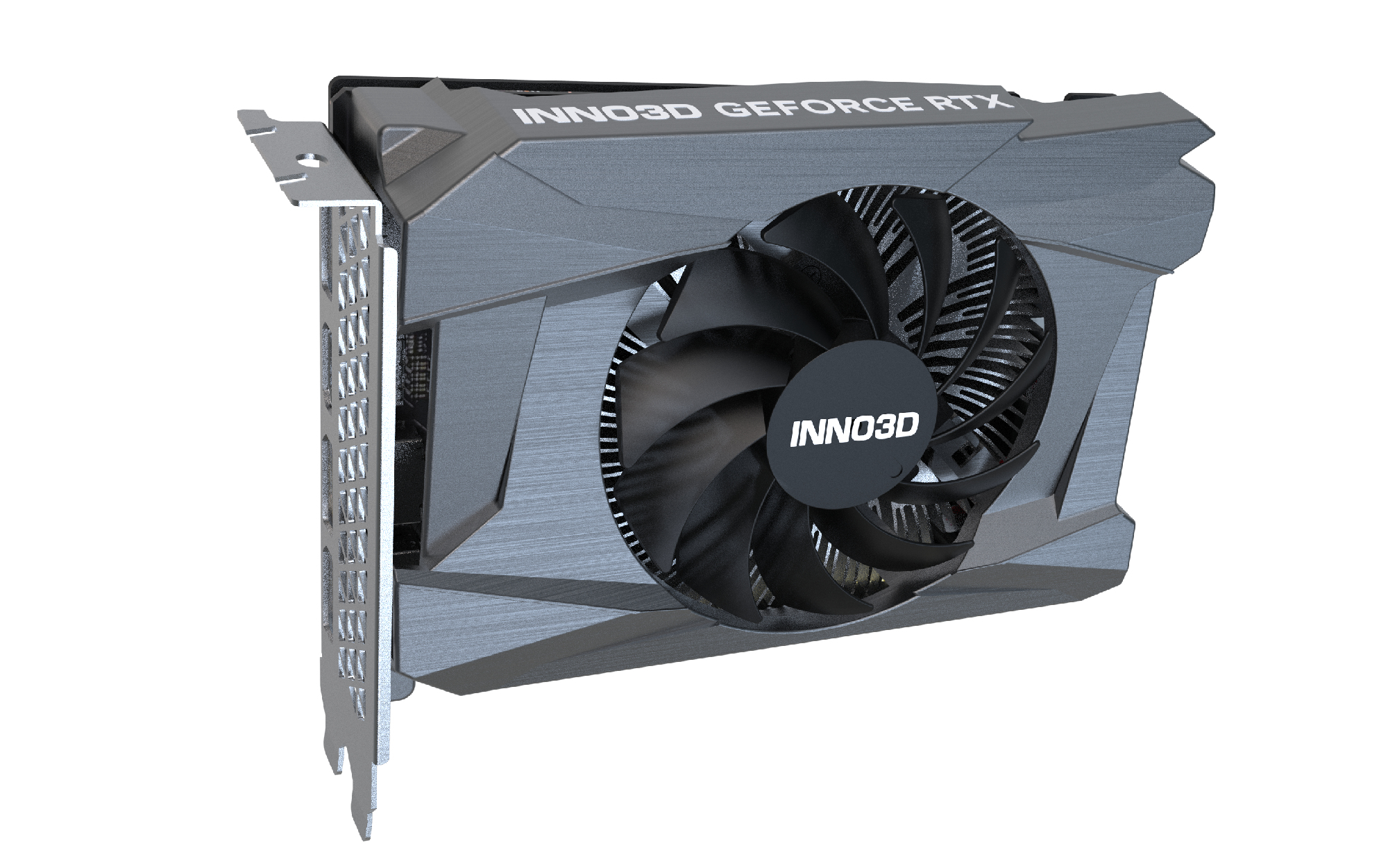

GEFORCE RTX 4060 COMPACT

Technical Spec.

GPU Engine Specs:
CUDA Cores 3072
Boost Clock (MHz) 2460
Base Clock(MHz) 1830
Thermal and Power Spec:
Minimum System Power Requirement (W) 550
Supplementary Power Connectors 1x PCIe 8-pin cable
Memory Specs:
Memory Clock 17Gbps
Standard Memory Config 8GB
Memory Interface GDDR6
Memory Interface Width 128-bit
Memory Bandwidth (GB/sec) 272
Feature Support:
Real-Time Ray Tracing Yes
Ray Tracing Cores 3rd Generation
Tensor Cores 4th Generation
NVIDIA Architecture Ada Lovelace
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 3
PCI Express Gen 4 Yes
NVIDIA GeForce Experience Yes
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI-E 4.0 X8
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNCâ„¢-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boostâ„¢ Yes
Vulkan API Yes
OpenGL 4.6
DisplayPort 1.4a Yes
NVIDIA Encoder 1x 8th Generation
NVIDIA Decoder 5th Generation
HDMI 2.1a Yes
Accessories:
Installation Guide Yes
Power Guide Yes
Graphics Card Dimensions:
Length 155mm
Height 122mm
Width 39mm
Display Support:
Multi Monitor Yes
Maxmium Digital Resolution 7680x4320
HDCP 2.3
Standard Display Connectors HDMI 2.1a, 3x DisplayPort 1.4a
