All stock codes associated to this product
ST124HDMI2, 1722051, 0065030841696
| Ports & interfaces |
|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Audio ports quantity | 5 |
| Video out | 4x HDMI |
| DC-in jack | Yes |
| Features |
|---|
| Housing material | Steel |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Supported video modes | 720p, 1080p |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Power |
|---|
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Weight & dimensions |
|---|
| Weight | 966 g |
| Width | 135 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Package weight | 2 kg |
| Package depth | 214 mm |
| Package width | 411 mm |
| Package height | 90 mm |
| Packaging data |
|---|
| Package weight | 2 kg |
| Package depth | 214 mm |
| Package width | 411 mm |
| Package height | 90 mm |
| Packaging content |
|---|
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Video |
|---|
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Supported video modes | 720p, 1080p |
| Colour |
|---|
| Product colour | Black |
| Certificates |
|---|
| Certification | CE, FCC, TAA, REACH |
| Technical details |
|---|
| Housing material | Steel |
| Cascadable | Yes |
| Video out | 4x HDMI |
| Package width | 411 mm |
| Package height | 90 mm |
| Audio support | Yes |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |

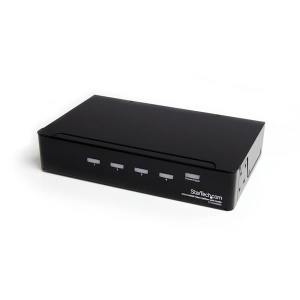

The ST124HDMI2 4 Port High Speed HDMI ® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel. A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage - High Speed HDMI ® support ensures compatibility with the latest HDMI source devices and displays - Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality * Product appearance and specifications are subject to change without notice.
