All stock codes associated to this product
ST122HDMI2, 1722049, 0065030842457
| Ports & interfaces |
|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Audio ports quantity | 2 |
| Video out | 2x HDMI |
| Features |
|---|
| Housing material | Steel |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 15 m |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Power |
|---|
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 13 W |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Weight & dimensions |
|---|
| Weight | 380 g |
| Width | 80 mm |
| Depth | 180 mm |
| Height | 20 mm |
| Package weight | 716 g |
| Package depth | 97 mm |
| Package width | 221 mm |
| Package height | 98 mm |
| Packaging data |
|---|
| Package weight | 716 g |
| Package depth | 97 mm |
| Package width | 221 mm |
| Package height | 98 mm |
| Packaging content |
|---|
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Video |
|---|
| Maximum resolution | 1920 x 1200 pixels |
| Colour |
|---|
| Product colour | Black |
| Certificates |
|---|
| Certification | CE, FCC, TAA, REACH |
| Indication |
|---|
| LED indicators | Yes |
| Technical details |
|---|
| Housing material | Steel |
| Video out | 2x HDMI |
| Package width | 221 mm |
| Package height | 98 mm |
| Maximum operating distance | 15 m |
| Sustainability certificates | RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176990 |
Split an HDMI audio and video signal to two displays simultaneously

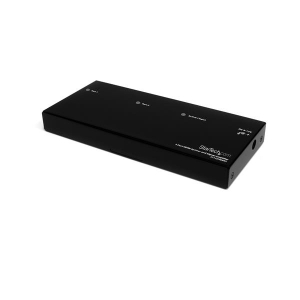

The ST122HDMI2 2-Port High Speed HDMI Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.
Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.
The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Signal amplification distributes HDMI signals without degradation or loss of signal quality
- Support for High Speed HDMI ensures compatibility with the latest HDMI devices and features
- Plug-and-play setup with no software or configuration allows you to be setup in minutes
