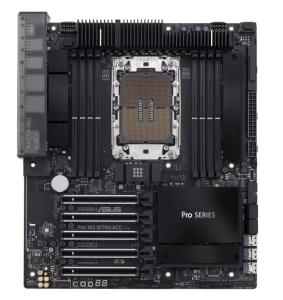

Intel ® W790 (LGA 4677) CEB workstation motherboard, PCIe 5.0 x16, M.2, 10G and 2.5G LAN, Server-grade Remote Management, 12+1+1 power stages, front and Rear USB 3.2 Gen 2x2 Type-C ®
Intel ® LGA 4677 socket: Ready for Intel Xeon ® W-3400 & W-2400 processors
CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C ® and 3 SlimSAS
Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software — ASUS Control Center Express
Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Model
Pro WS W790-ACE
CPU
Intel ® Socket LGA4677 for Xeon ® W-3400 and W-2400 Series Processors*
Supports Intel ® Turbo Boost Max Technology 3.0
* Refer to www.asus.com for CPU support list.
Chipset
Intel ® W790 Chipset
Memory
8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
Quad Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
Expansion Slots
Intel ® Xeon™ W-3400 and W-2400 Series Processors
5 x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/suppor
