All stock codes associated to this product
TUF GAMING B760-PLUS WIFI, TUF GAMING B760PLUS WIFI, 5756008, MBAB760PLUSWF, MBA-B760-PLUS-WF, 90MB1ER0M1UAY0, 90MB1ER0-M1UAY0, TUFGAMINGB760PLUSWIFI, TUF-GAMING-B760-PLUS-WIFI, 4711387095126
| Internal I/O |
|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Performance |
|---|
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | LGA 1700 |
| RAID levels | 0, 1, 5, 10 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Processor |
|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel ® Celeron ®, Intel ® Core™ i3, Intel ® Core™ i5, Intel ® Core™ i7 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Memory |
|---|
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5066 MHz |
| Storage controllers |
|---|
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics |
|---|
| Parallel processing technology support | Not supported |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features |
|---|
| Power source type | ATX |
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | LGA 1700 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots |
|---|
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Power |
|---|
| Power source type | ATX |
| Packaging data |
|---|
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.16 kg |
| Weight & dimensions |
|---|
| Width | 305 mm |
| Depth | 244 mm |
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.16 kg |
| Packaging content |
|---|
| Cables included | SATA |
| Other features |
|---|
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.16 kg |

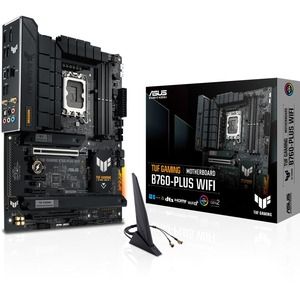

TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL The TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
All-Around Energy Efficiency The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
ROCK-SOLID PERFORMANCE With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING B760-PLUS WIFI is the perfect foundation for your next Intel battle rig.
EASY PC DIY The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
IMMERSIVE GAMING TUF GAMING B760 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
