USB32HDEH | Startech USB 3.0 to HDMI Adapter with 1-Port USB Hub —

Performance
USB connector type	USB Type-A
USB connector gender	Male
Internal memory	16 MB
Supported graphics resolutions	800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
USB pass-through	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	1
Maximum resolution	1920 x 1200 pixels
Audio output channels	2.0 channels
Certification	CE, FCC, TAA, REACH
Design
Product colour	Black
Integrated USB cable	Yes
USB cable length	0.16 m
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Minimum processor family	Core i5
Minimum processor speed	2.4 GHz
Minimum RAM	4 GB
Operational conditions
Operating temperature (T-T)	0 - 50  Â°C
Storage temperature (T-T)	-10 - 75  Â°C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	49 mm
Depth	85 mm
Height	17 mm
Weight	66 g
Package width	146 mm
Package depth	213 mm
Package height	38 mm
Package weight	244 g
Packaging content
Software CD	Yes
Manual	Yes
Technical details
Sustainability certificates	RoHS
Harmonized System (HS) code	84733020
Logistics data
Harmonized System (HS) code	84733020

---

USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows

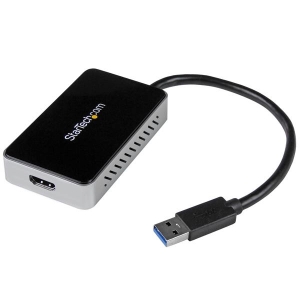

The USB32HDEH USB 3.0 to HDMI Adapter is TAA compliant and turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the HDMI adapter — an ideal workaround for Ultrabook or laptop users, where only a limited number of USB ports are available.

Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Recommended System Requirements:

CPU: Quad Core 2.4GHz or Higher (i5 recommended)

RAM: 4GB or higher

The StarTech.com Advantage

- Keep a USB 3.0 port available on your Ultrabook or slim laptop, using the built-in USB 3.0 hub
- Enjoy smooth, high-definition video content, using a high bandwidth USB 3.0 connection
