All stock codes associated to this product
CDPVDHMDPDP, 4400768, 0065030878074
| Performance |
|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| VGA (D-Sub) output | Yes |
| Chipset | Parade - PS176, VIA/VLI - VL102, ITE -IT6516 |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 4 |
| DVI connector type | DVI-D |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (DVI) | 1920 x 1200 pixels |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Audio output channels | 7.1 channels |
| Certification | CE, FCC, REACH |
| Mini DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Design |
|---|
| Product colour | Black, Grey |
| Integrated USB cable | Yes |
| USB cable length | 0.101 m |
| Power |
|---|
| Power consumption (max) | 95 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Width | 57 mm |
| Depth | 109 mm |
| Height | 18 mm |
| Weight | 128 g |
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 200 g |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Logistics data |
|---|
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 84733020 |

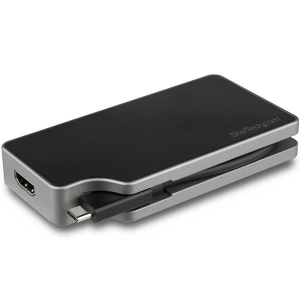

USB-C to VGA DVI HDMI or mDP Travel Adapter | Aluminum| 4K 60Hz | Wrap-Around Cable
This USB-C multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI or Mini DisplayPort (mDP) display. It features USB Power Delivery, so you can power your laptop while outputting video using the same USB-C port.
Power and Video in One Port
This USB-C adapter supports USB Power Delivery up to 95 watts and features an additional USB-C port. You can  charge your laptop using its USB-C power adapter, even while you output video. Many laptops support charging through a USB-C port with Power Delivery, check your specifications to confirm compatibility.
All-in-One Video Connectivity with Travel in Mind
Carry one adapter instead of four. This versatile 4-in-1 monitor adapter lets you connect your USB-C laptop to any display. With its durable aluminum enclosure and a magnetic retainer that secures the breakout cable in place while you’re not using it, the adapter is rugged enough to carry in your travel bag.
Astonishing Picture Quality
The HDMI and mDP outputs support UHD 4K resolutions, providing four times the picture quality of high-definition 1080p. All of the outputs (HDMI, mDP, VGA, DVI) support high-definition resolutions up to 1920 x 1200. The adapter is compatible with USB-C DP Alt Mode devices.
Stylish Connectivity
The USB-C adapter has a Space Gray trim and built-in USB-C cable designed to match your Space Gray MacBook, or MacBook Pro.
CDPVDHMDPDP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 5-IN-1 MULTIPORT USB-C VIDEO ADAPTER: USB-C DP Alt Mode to any one of 4K 60Hz HDMI 2.0/mDP 1.2 or 1080p VGA/DVI with HDCP 2.2/1.4, Thunderbolt 3 compatible, 95W Power Delivery Pass-Through, Space Gray
- 95W PD 3.0 PASS-THROUGH: Use a USB-C power adapter to charge laptop (Ultrabooks & workstations) up to 95W; prevents video drop/flickering when power is added/removed on PD 3.0 laptops like MacBook Pro
- COMPATIBILITY: USB-C display adapter for TB3 MacBook Pro/Air, Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Surface Book 3, HP EliteBook/Spectre/ZBook, Chromebooks
