All stock codes associated to this product
CDP2DVIUCPW, 3741303, 0065030872195
| Performance |
|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Chipset | Parade - PS171, VIA/VLI - VL100 |
| DVI output | Yes |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| DVI connector type | DVI-I |
| Maximum resolution | 1920 x 1200 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Certification | CE, FCC, REACH |
| Design |
|---|
| Product colour | White |
| Integrated USB cable | Yes |
| USB cable length | 0.1 m |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions |
|---|
| Width | 40 mm |
| Depth | 60 mm |
| Height | 13 mm |
| Weight | 32 g |
| Package width | 145 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Logistics data |
|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 315 mm |

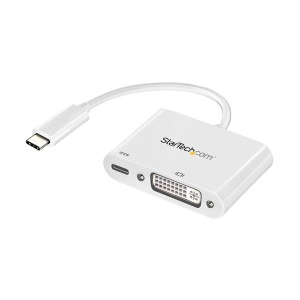

Use this USB Type C adapter to output DVI video and charge your laptop using a single USB C port
This USB-C to DVI adapter lets you connect a USB-C laptop, such as an Ultrabook or MacBook Pro, to a  DVI display. The video adapter features USB Power Delivery, which enables  you to power and  charge  your laptop while you're outputting video to a DVI  display. To match the aesthetics of your device, this adapter is colored white. Â
USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the latest MacBook or Windows laptops. It's also compatible with Thunderbolt 3 ports.
Charge your device at the same time
Unlike some video adapters that use up one of your laptop’s USB-C ports to  output  video, this video adapter offers an additional USB-C charge port that  supports USB Power Delivery up to 60 watts. This means you can charge your laptop and  output  video using the same laptop port, by simply connecting the laptop’s power adapter to the additional USB-C port on the adapter. It’s the perfect solution for laptops that  have only a limited  number of USB-C ports.
Take it with you
This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. It’s the perfect accessory to carry with your device, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Connect quickly
This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device when you're trying to deliver a presentation or sharing information.
The CDP2DVIUCPW is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- PERFORMANCE: The USB-C (DP 1.2 Alt Mode HBR2) adapter with PD lets you connect a single DVI (DVI-Digital/single link) display supporting 1920x1200 or 1080p at 60Hz; equipped w/ EDID & DDC pass-through
- 60W PD PASS THROUGH CHARGING: This white USB-C video converter allows up to 60W Power Delivery to power & charge your laptop while displaying video on a DVI monitor/projector using a single USB-C port
- COMPATIBILITY: Works w/ DisplayPort over USB Type-C (TB3 compatible) laptops like Lenovo ThinkPad X1 Carbon, Dell XPS 13, HP EliteBook, TB3 MacBook Pro 13 / Air, Surface Book 3/Laptop 3, Chromebook
