MSI MAG B760M MORTAR WIFI II Motherboard
  • LGA1700, B760, 4xDDR5-7800+, 1xPCI-Ex16, 3xM.2, 4xSATA, 1xDP, 1xHDMI, 1x2.5Gb LAN, WiFi 6E, 2xUSB3.2 , 4xUSB2.0, mATX

IMG 1 of 1
Our Price:
$418.85
RRP:
$427.90
You Save:
$9.05
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
535989
(?) Brand:
MSI Web Site
Manuf No:
MAG B760M MORTAR WIFI II
Shipping Weight:
1.46 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MAG B760M MORTAR WIFI II, MAGB760MMORTARWIFIII, MBMB760MMORTARWFII, MBM-B760MMORTARWF-II, MBMSB760MMWII, MBMS-B760M-MWII, 4711377140119

MAG B760M MORTAR WIFI II

  • Support IntelCore 14th/ 13th/ 12th Gen Processors, IntelPentiumGold and CeleronProcessors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

CHIPSETINTEL B760
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700
MEMORY4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
ONBOARD GRAPHICS1x HDMIâ„¢
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
SLOT1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
AUDIORealtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LANRealtek® 2.5Gbps LAN
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
WIRELESS LAN &LUETOOTHIntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE4x EZ Debug LED

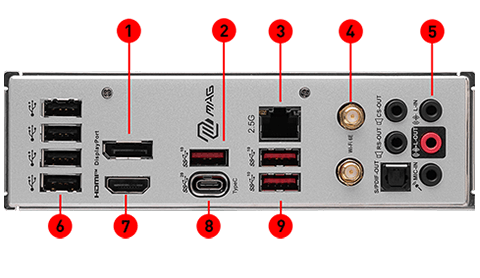

BACK PANEL PORTS

  • DisplayPort 1.4
  • USB 3.2 Gen 2 10Gbps Type-A
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth
  • HD Audio Connectors
  • USB 2.0
  • HDMIâ„¢ 2.1 Port
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • USB 3.2 Gen 2 10Gbps Type-A

    • OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
    PCB INFOmATX
    243.84mmx243.84mm<
