All stock codes associated to this product
VIGI C350(4mm), NWTLVIGIC3504, NWTL-VIGI-C350-4, VIGI C350(4MM), VIGIC350(4MM), VIGI-C350(4MM), 4895252502978
| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Built-in light | Yes |
| Design |
|---|
| Form factor | Bullet |
| Product colour | Black, White |
| Mounting type | Ceiling |
| LED indicators | Yes |
| International Protection (IP) code | IP67 |
| Housing material | Plastic |
| Camera |
|---|
| Minimum illumination | 0.005 lx |
| Tilt angle range | 0 - 90 ° |
| Pan range | 0 - 360 ° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Lens viewing angle, horizontal | 90 ° |
| Lens viewing angle, vertical | 48 ° |
| Lens viewing angle, diagonal | 107 ° |
| Number of Privacy masking areas | 4 |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Identify distance | 8 m |
| Fixed focal length | 4 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Video |
|---|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Smart IR | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 6 Mbps |
| Back Light Compensation (BLC) | Yes |
| Maximum resolution | 2880 x 1620 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Audio |
|---|
| Audio input channels | 1 channels |
| Audio output channels | 1 channels |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Sample rate | 8 kHz |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Bit rate range | 0 - 64 Kbit/s |
| Network |
|---|
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Live view | Yes |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security |
|---|
| Intelligent Video Surveillance (IVS) system features | Vehicle detection |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Management features |
|---|
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region exiting detection |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 10.5 W |
| Power consumption (max) | 9 W |
| DC-in jack | Yes |
| DC output voltage | 12 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Package type | Box |
| Width | 186.9 mm |
| Height | 71.5 mm |
| Length | 78.4 mm |
| Packaging content |
|---|
| Number of cameras | 1 |
| Package type | Box |
| Technical details |
|---|
| Sustainability compliance | Yes |
| Sustainability certificates | BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Other features |
|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |

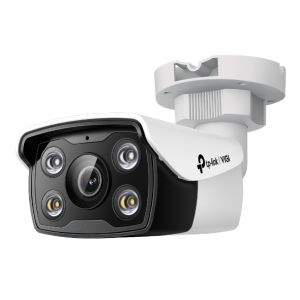

All The Colors, All The Time5MP Outdoor Full-Color Bullet Network Camera
24/7 Stunning Visual Experience5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.
Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Comprehensive AI Detection with Pre-Set Rules SupportedBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
Set customized activity zones around key areas for more focused monitoring.
People & Vehicle AnalyticsQuickly find people and vehicles of interest using a series of attributes.
People AnalyticsFilter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.
Vehicle AnalyticsIdentify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.
Active DefenseWarn potential intruders instantly with sound and light when abnormal events.
Every Event is Under Your ControlVIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
Outdoor PoE Connection, IP67 ProtectionJust connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Smart Video Coding by H.265+â–³
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
â–³Tile encoding is automatically enabled in H.265 mode when the horizontal resolution exceeds 2688. If a third-party NVR doesn't support tile encoding, it cannot enable H.265 mode. For optimal performance, we recommend using VIGI NVR with VIGI cameras.
Flexible StorageLocal storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time AlertsEasily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart PlaybackQuickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring PatternsBased on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way ManagementFlexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.
One system. Full security.Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
