| Performance |
|---|
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design |
|---|
| IK code | IK10 |
| Fog proof | Yes |

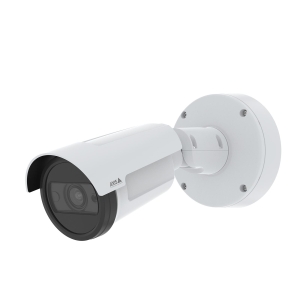

| Form factor | Bullet |
| Product colour | White |
| Mounting type | Wall/Pole |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Minimum illumination | 0.01 lx |
| Camera shutter speed | 1/71500 - 2 s |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 117° |
| Lens viewing angle, vertical | 59° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Panoramic camera |
|---|
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system |
|---|
| Auto focus | Yes |
| Closest focusing distance | 0.5 m |
| Zoom capability | Yes |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Privacy masking | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Network |
|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Built-in HDD | No |
| Internal memory | 1024 MB |
| Flash memory | 8192 MB |
| Ports & interfaces |
|---|
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security |
|---|
| Security algorithms | EAP-TLS, HTTPS, TLS |
| HTTPS encryption | Yes |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
| Power consumption (typical) | 7.2 W |
| Power consumption (max) | 12.95 W |
| DC-in jack | Yes |
| DC output voltage | 10, 28 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions |
|---|
| Diameter | 13.2 cm |
| Length | 280 mm |
| Weight | 1.2 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
