All stock codes associated to this product
MSTCDP122DP, 3372931, 0065030864497
| Performance |
|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Chipset | MegaChips - STDP4320, VIA/VLI - VL100 |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 2 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Certification | CE, FCC, REACH |
| Design |
|---|
| Product colour | Black |
| Integrated USB cable | Yes |
| USB cable length | 0.324 m |
| System requirements |
|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 50 - 90% |
| Weight & dimensions |
|---|
| Width | 58 mm |
| Depth | 386 mm |
| Height | 14 mm |
| Weight | 44 g |
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 32 mm |
| Package weight | 133 g |
| Packaging content |
|---|
| Quick installation guide | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Logistics data |
|---|
| Products per master (outer) case | 28 pc(s) |
| Master (outer) case width | 334 mm |
| Master (outer) case length | 501 mm |
| Master (outer) case height | 226 mm |
| Harmonized System (HS) code | 84733020 |
Dual Monitor Adapter | Windows | Thunderbolt 3 Compatible

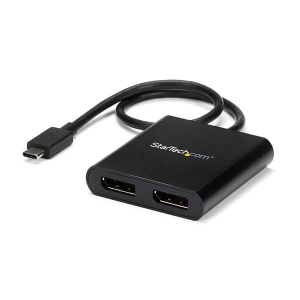

This  USB-C to DisplayPort MST Hub  lets you connect two  DisplayPort  monitors to your USB  Type-C  Windows  device,  conveniently  helping  you  to maximize  your productivity. Â
Multitasking Made Easy Â
With devices becoming more portable than ever, you  can be  limited to fewer video outputs and confined to your small integrated screen. This  multi-stream transport hub  solves that problem by enabling you to connect two  separate  displays to  your USB-C computer,  making multitasking much easier.  Â
Using this  USB-C  to dual DisplayPort  monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display,  which makes it the ideal accessory for  travel or  hot-desking.  Â
Astonishing Picture Quality Â
MST  technology uses your existing video card to minimize the use of system resources,  while delivering  UHD  4K resolutions  for two monitors or displays  simultaneously.  With support for HD 1080p and UHD 4K,  the  dual-monitor splitter  is perfect for all high-resolution applications such as graphic design and CAD drawing. Â
Hassle-Free Setup Â
Multi-stream transport  offers  an easy  setup,  by natively working on any Windows device that supports DP Alt Mode over USB Type-C.  This USB-C  dual-monitor adapter  is Thunderbolt 3  compatible,  and  offers  plug-and-play  installation  with no drivers or software required. Additionally, this  DP MST hub  is powered by the USB-C port, meaning no external power cords are  necessary.  Â
MSTCDP122DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support. Â
The StarTech.com Advantage
- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 2x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible
- CONVENIENCE: With a built-in 1ft cable, this bus-powered 2-port MST hub provides an easy method to connect up to two independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers
