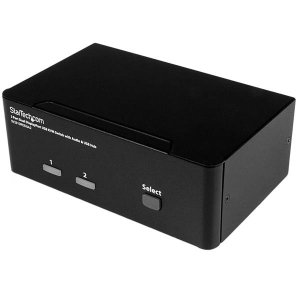

SV231DPDDUA2 | Startech 2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz

Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Ports & interfaces
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB connector type	USB Type-A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes
Network
Ethernet LAN	No
Performance
Daisy chain	No
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Design
Product colour	Black
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, REACH, TAA
Display
Built-in display	No
Power
Input current	1.5 A
Output current	0.6 A
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
AC input voltage	100 - 240 V
External power adapter	Yes
Sustainability
Sustainability certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	20 - 60  Â°C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	161 mm
Depth	58 mm
Height	100 mm
Weight	734 g
Package width	186 mm
Package depth	249 mm
Package height	97 mm
Package weight	1.2 kg
Packaging data
Package width	186 mm
Package depth	249 mm
Package height	97 mm
Package weight	1.2 kg
Packaging content
Rubber feet	Yes
Manual	Yes
Certificates
Certification	CE, FCC, REACH, TAA
Logistics data
Harmonized System (HS) code	85176200
Technical details
Sustainability certificates	RoHS
Other features
Push button	Yes
Hot keys	Yes
IP control	No
Audio support	Yes

---

Access two dual-monitor computers and two shared USB peripherals from a single workstation

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

Maximize productivity with dual video

With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Convenient peripheral sharing

This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

The SV231DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm auxiliary support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
