All stock codes associated to this product
SV431DHD4KU, 4187650, 0065030840095
| Video |
|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Ports & interfaces |
|---|
| Console USB ports quantity | 6 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB connector type | USB Type-A |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Headphone outputs | 4 |
| HDMI ports quantity | 10 |
| Performance |
|---|
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Design |
|---|
| Mean time between failures (MTBF) | 168000 h |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Power, Status |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Steel |
| Display |
|---|
| Built-in display | No |
| Power |
|---|
| Input current | 0.6 A |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, JP, UK, US |
| Output voltage | 12 V |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions |
|---|
| Width | 130 mm |
| Depth | 220 mm |
| Height | 63 mm |
| Weight | 1.2 kg |
| Package width | 124 mm |
| Package depth | 295 mm |
| Package height | 85 mm |
| Package weight | 1.8 kg |
| Packaging data |
|---|
| Package width | 124 mm |
| Package depth | 295 mm |
| Package height | 85 mm |
| Package weight | 1.8 kg |
| Packaging content |
|---|
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Certificates |
|---|
| Certification | CE, FCC, TAA, REACH |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176200 |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Other features |
|---|
| Hot keys | Yes |
| IP control | No |

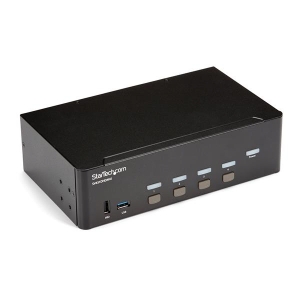

This 4K HDMI KVM with dual monitor support lets you control four HDMI computers with a single mouse, keyboard and dual monitors up to 4K at 30Hz
This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.
4K at 30Hz UHD dual display
With support for ultra-high-definition 4K 30Hz resolutions,  this 4-port KVM switch can drive dual HDMI  displays  with crystal clarity, making it ideal for graphical applications that require UHD capability.
Convenient and cost-effective USB 3.0 peripheral sharing
This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment.  The USB 3.0  hub automatically switches your connected devices to the selected computer, saving you the hassle of  disconnecting  and reconnecting peripherals.
Complete multimedia capability
Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.
The SV431DHD4KU is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-definition video quality with support for dual 4K at 30Hz displays
- Two built-in USB 3.0 ports and independent HID keyboard/mouse ports
- No software or drivers required
