All stock codes associated to this product
SV211HDUC, 4936399, 0065030882170
| Video |
|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Ports & interfaces |
|---|
| Console USB ports quantity | 2 |
| Console ports | HDMI, USB A |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| HDMI ports quantity | 1 |
| Performance |
|---|
| Daisy chain | No |
| Chipset | Parade - PS176, VLI - VL170, Terminus - FE1.1S |
| Data transfer rate (max) | 480 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Audio channels | 7.1 |
| Design |
|---|
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Hot keys | No |
| Certification | REACH, CE |
| Housing material | Plastic |
| Display |
|---|
| On Screen Display (OSD) | No |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions |
|---|
| Width | 140 mm |
| Depth | 72 mm |
| Height | 16 mm |
| Weight | 265 g |
| Package width | 172 mm |
| Package depth | 120 mm |
| Package height | 85 mm |
| Package weight | 600 g |
| Packaging data |
|---|
| Package width | 172 mm |
| Package depth | 120 mm |
| Package height | 85 mm |
| Package weight | 600 g |
| Packaging content |
|---|
| Cables included | USB Type-C |
| Quick installation guide | Yes |
| Certificates |
|---|
| Certification | REACH, CE |
| Logistics data |
|---|
| Master (outer) case width | 450 mm |
| Master (outer) case length | 363 mm |
| Master (outer) case height | 280 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Other features |
|---|
| Hot keys | No |
| IP control | No |

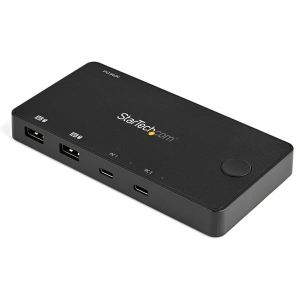

USB-C™ with DP Alt Mode | HDMI® 2.0 | 4K 60Hz | Host Cables Included
This 2-port USB-C KVM enables you to easily switch between two USB Type-C or Thunderbolt 3 desktop or laptop computers, using a single keyboard, HDMI monitor and mouse.Easy to Setup and UseUtilizing USB-C with DP alt-mode, this compact KVM switch only requires a single cable be connected to each of your computers, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.For easy operation, the KVM features a single button that toggles between connected computers.Supports 4K 60Hz ResolutionsThe USB-C KVM switch supports UHD resolutions up to 4K (3840x2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.Compact and PortableAlong with the USB-C design that ensures cabling requires are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.Guaranteed CompatibilityThe KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iPadOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.The SV211HDUC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- SPACE-SAVING: Compact USB C KVM switch enables easy switching between 2 USB Type C or Thunderbolt 3 desktops/laptops using 1 keyboard, monitor & mouse; OS independent and works with the Apple iPad Pro
- 2 PORT USB-C KVM: 4K 60Hz UHD
- 3840x2160
