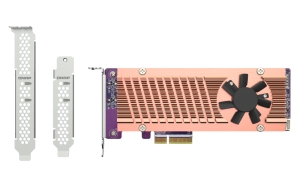

QNAP QM2-2P-344A interface cards/adapter Internal M.2

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	M.2
NVMe	Yes
Expansion card standard	PCIe 3.0
Performance
Purpose	NAS / Storage server
Data transfer rate (max)	32 Gbit/s
Product colour	Brown, Grey
NVMe	Yes
Design
Internal	Yes
Purpose	NAS / Storage server
Product colour	Brown, Grey
Cooling type	Active
Number of fans	1 fan(s)
LED indicators	Yes
Number of expansion slots	2
Features
Data transfer rate (max)	32 Gbit/s
NVMe	Yes
Technical details
Interface	PCIe Gen3 x 4
Quantity per pack	1 pc(s)
Weight & dimensions
Width	68.9 mm
Depth	170.5 mm
Height	19.3 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Other features
Interface	PCIe Gen3 x 4

---

Add two M.2 NVMe SSDs to your NAS with a PCIe 3.0 expansion card.


PCIe 3.0

PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds to your NAS.


Ready-to-use

No drivers or extra software are required.


SSD cache & volume

Configure SSD caching, an SSD volume, or Qtier (QNAP’s auto-tiering technology) to improve overall NAS performance.


Efficient cooling module

Keeps your SSDs cool and maintains high performance.


Tool-less design

Easily install M.2 SSDs in your NAS with a screw-less, easy-to-use locking method.


LED indicators & thermal sensors

Monitor the real-time status and temperatures of the M.2 SSDs.


Fast, efficient, and easy-to-use

The efficient architecture of the QM2-2P-344A allows you to easily install NVMe SSDs and maximize their performance with a quiet cooling module.


SSD caching

Enable SSD caching to optimize system performance and reduce I/O latency. Caching is especially ideal for IOPS-demanding applications such as virtual machines and systems with a large number of small files.


Qtier

Alternatively, you can set up Qtier auto-tiering to your NAS to improve overall system performance and maximize storage utilization.


Keep SSD cool

A quiet cooling module (heatsink and smart fan) keeps your SSDs running with dependable high performance.


Super-fast NVMe SSD storage volume

Photographers and videographers can tackle high-resolution RAW multimedia editing directly on NVMe SSD volumes. RAID configurations can help prevent data loss from drive failure.
