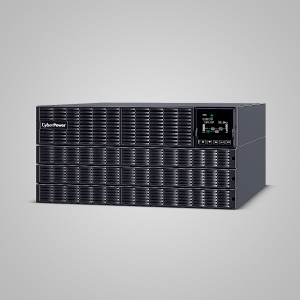

CyberPower OLS6KERT5U uninterruptible power supply (UPS) Double-conversion

Power
Output frequency	50/60 Hz
Output power capacity	6 kVA
Output power	6000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1335 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Output power factor	1
Input power factor	0.99
Input current Total Harmonic Distortion (THD)	1.5%
Crest factor	3:1
Charging current	4 A
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Performance
Audible alarm modes	Battery replacement, Fault, Overload alarm
UPS topology	Double-conversion (Online)
EMI/RFI noise filtering	Yes
Waveform	Pure sine
Power protection features	Overload
Noise level	62 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Battery replacement, Fault, Overload alarm
UPS topology	Double-conversion (Online)
Output power capacity	6 kVA
Output power	6000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	1335 J
EMI/RFI noise filtering	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Overload
Output voltage Total Harmonic Distortion (THD)	2%
Output power factor	1
Input power factor	0.99
Input current Total Harmonic Distortion (THD)	1.5%
Crest factor	3:1
Noise level	62 dB
Audible alarm(s)	Yes
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Carrying handle(s)	No
Heat dissipation	1777 BTU/h
Package type	Box
Charging current	4 A
Ports & interfaces
USB port	Yes
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, Terminal
Power plug	C13 coupler
RS-232 ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Typical backup time at half load	17.7 min
Typical backup time at full load	5.6 min
Hot-swap battery	Yes
Charging current	4 A
Design
Rack capacity	5U
Form factor	Tower
Product colour	Black
Built-in fan	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-15 - 45  Â°C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 1500 m
Non-operating altitude	0 - 1500 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Cooling
Built-in fan	Yes
Weight & dimensions
Package type	Box
Width	433 mm
Depth	661 mm
Height	213.5 mm
Weight	75 kg
Package width	575 mm
Package depth	890 mm
Package height	489 mm
Package weight	94 kg
Packaging data
Cables included	USB cable
Manual	Yes
Package type	Box
Package width	575 mm
Package depth	890 mm
Package height	489 mm
Package weight	94 kg
Packaging content
Cables included	USB cable
Manual	Yes

---

CyberPower OLS6KERT5U is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.

With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the UPS is equipped with Remote Cloud Card to support remote monitoring via a web portal and the mobile app. The tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.
