All stock codes associated to this product
SRV10KRILRK, UPAPCSRV10KRILRK, UPAPC-SRV10KRILRK, 4495453

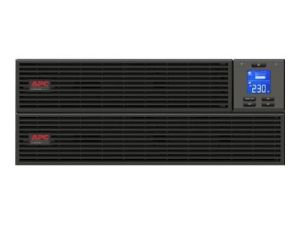

APC by Schneider Electric Easy UPS SRV10KRILRK Double Conversion Online UPS - 10 kVA - Single Phase - 2U Rack-mountable - 3 Hour Recharge - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 1 x Terminal Block - Serial Port
For IT professionals in small to medium businesses, EasyUPS Online provides basic power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. APC Easy UPS Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, and inconsistent power conditions; delivering the quality millions of IT professionals trust around the world. That's Certainty in a Connected World.
Controls/Indicators
| Status Indicators | - Load Level
- Battery Level
- AC Mode
- Battery Mode
- Bypass Mode
- Fault
|
Environmental Conditions
| Maximum Operating Temperature | 40°C |
Miscellaneous
| Environmentally Friendly | Yes |
Interfaces/Ports
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free/Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
Physical Characteristics
| Weight (Approximate) | 16 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 86.5 mm |
| Width | 438 mm |
| Depth | 615 mm |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRV10KRILRK |
| Manufacturer Website Address | https://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV10KRILRK |
| Product Name | Easy UPS SRV10KRILRK 10KVA Rack-mountable UPS |
| Product Line | Easy UPS |
| Product Series | SRV |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC |
| 220 V AC |
| Surge Energy Rating | 600 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 10 kVA |
Technical Information
| Application/Usage | Server |
| Industrial Equipment |
| Desktop Computer |
| Communication Application |
| Business |
| Workstation |
| Plug/Connector Type | Terminal Block |
| Phase | Single Phase |
| Receptacle Type | Terminal Block |
| Transfer Time | 0 ns |
| Receptacle Detail | 1 x Terminal Block |
