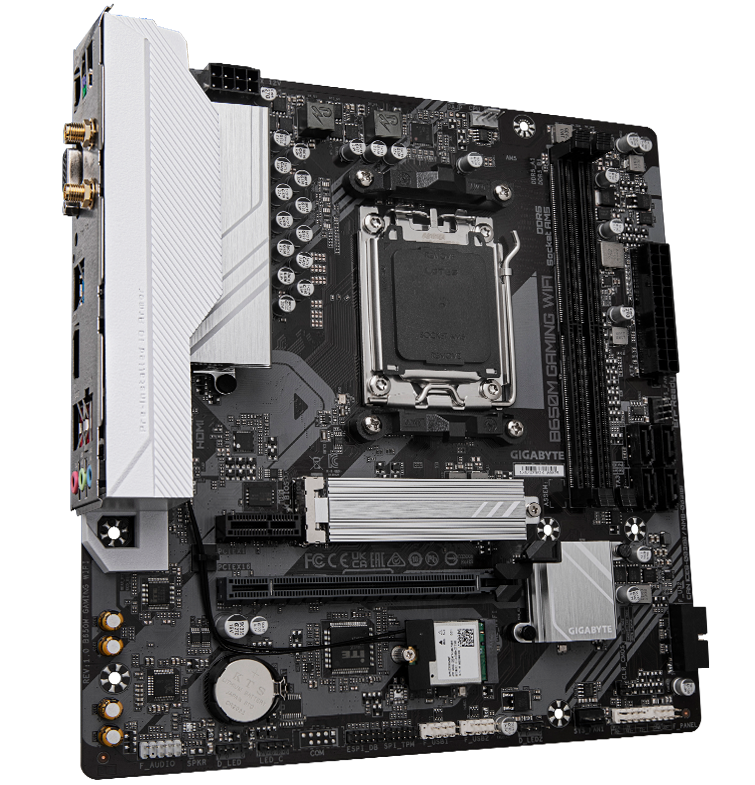

Gigabyte B650M GAMING WIFI MotherboardAM5, B650, 2xDDR5-6400, 1xPCI-Ex16, 1xM.2, 4xSATA, RAID, VGA, HDMI, USB3.2, 1x2.5Gb LAN, WiFi, mATX

IMG 1 of 4
Our Price:
$170.00
RRP:
$180.91
You Save:
$10.91
or quickly purchase this product
Backorder
Part Number:
541826
(?) Brand:
Gigabyte Web Site
Manuf No:
M/B B650M GAMING WIFI 1.0
Shipping Weight:
0.55 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
M/B B650M GAMING WIFI 1.0, M/BB650MGAMINGWIFI1.0, M/BB650MGAMINGWIFI10, GAB650MGAMINGWIFI, GA-B650M-GAMING-WIFI, B650M GAMING WIFI, MBGB650MGAMINGWIFI, MBG-B650MGAMINGWIFI

B650M GAMING WIFI

  • AMD Socket AM5Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
  • Unparalleled Performance5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR52*SMD DIMMs with AMD EXPO &tel XMP Memory Module Support
  • SuperSpeed StoragePCIe 4.0 x4 M.2 Connector
  • EZ-LatchPCIe x16 Slot with Quick Release Design
  • Fast Networks2.5GbE LAN
  • Extended ConnectivityHDMI , D-sub
  • Smart Fan 6Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash PlusUpdate BIOS Without Installing the CPU, Memory and Graphics Card

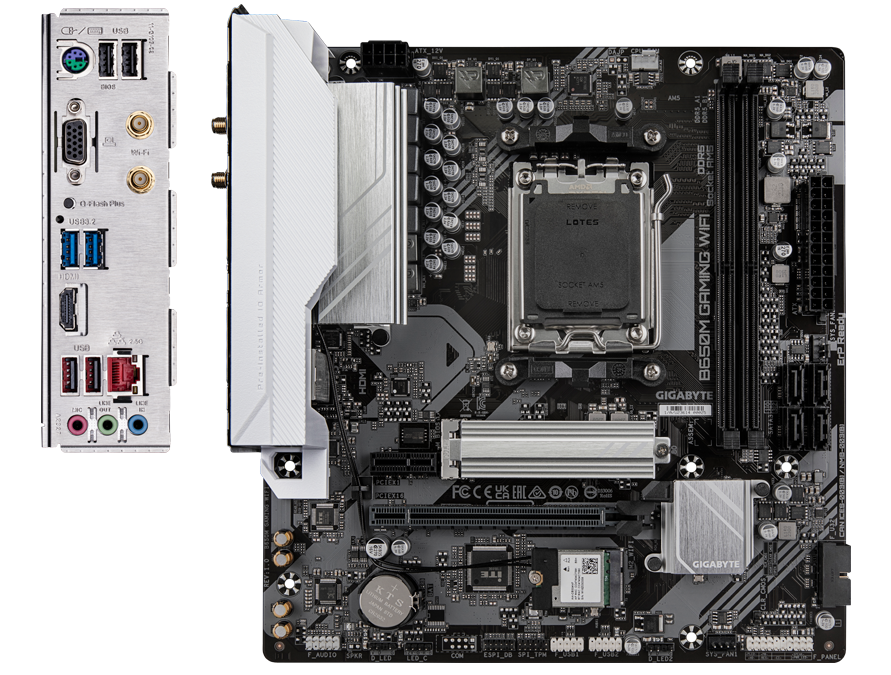

OVERVIEW

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18

  • Solid Pin CPU Power Connector

  • 5+2+2 Digital VRM Design

  • 1*PCIe 4.0 x16 slot

  • 4* USB 2.0

  • 802.11ac Wi-Fi

  • D-sub

  • 2*USB 3.2 Gen1

  • HDMI

  • 2.5 GbE LAN

  • 1*PCIe 4.0 x4 M.2 Connector

  • Dual Channel SMD DDR5 Memory

  • Socket AM5 Supports

    AMD Ryzen Series Processors

  • Smart Fan 6

    • 3*PWM/DC Fan Headers
    • Dual Fan Curve Mode

  • PCIe EZ-Latch

  • RGB FUSION

    • 1*Addressable LED Header
    • 1*RGB LED Header

  • Hi-Fi Audio

    • 8-Ch HD Audio
    • Audio Noise Guard
    • High-End Audio Capacitor

  • Q-FLASH PLUS Button

  • 4*SATA 6Gb/s

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

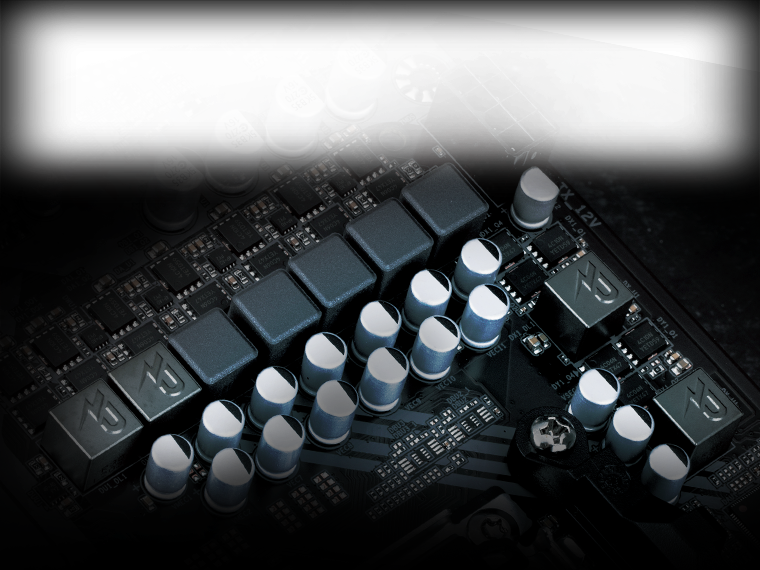

Digital VRM Design

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

* Photo for reference only.

EXPO &P Support

DDR5 EXPO &P Overclocking Up to 6400 and Beyond*

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/ Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

* EXPO/XMP profiles support may vary depending on memory modules.
* Please refer the completed validated memory support list.
* Product features may vary by model.

EXPO &P Support

Unlock DDR5 Voltage

Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

  • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
  • Transforms Native DDR5 memory module to Overclocked DDR5 memory
  • Increases DDR5 memory overclocking performance and capability
  • Supports all PMIC vendors for maximum compatibility

    • * Memory overclocking capabiblity will vary based on users' hardware configuration

EXPO &P Support

GIGABYTE Exclusive DDR5 Circuit Design

Programmable Mode
GIGABYTEs exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

EXPO &P Support

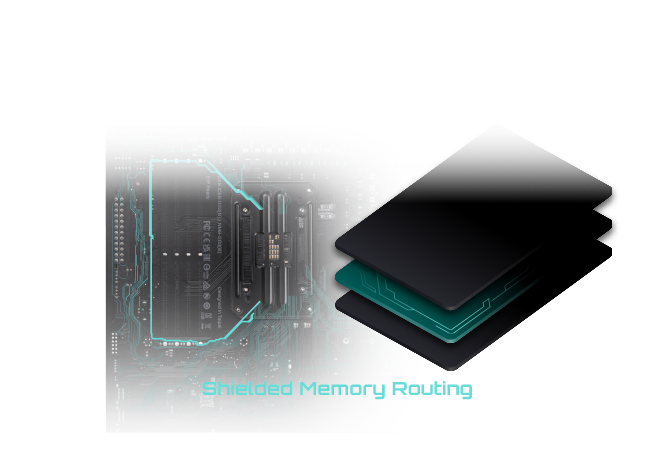

Shielded Memory Routing
Note: The picture is for reference and may vary by mode.

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

EXPO &P Support

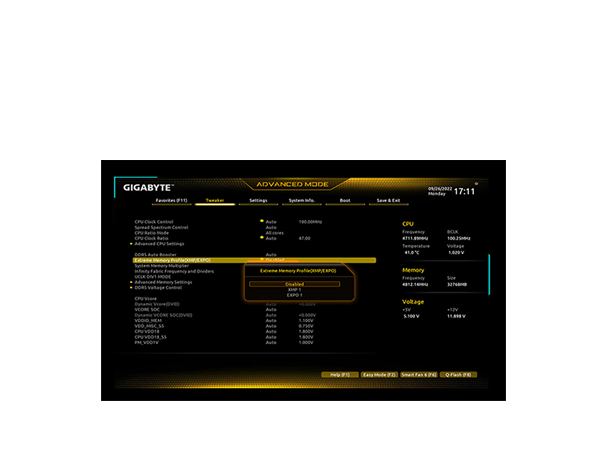

EXPO and XMP Dual Support

GIGABYTE AM5 MB supports both AMD EXPO and Intel XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

EXPO &P Support

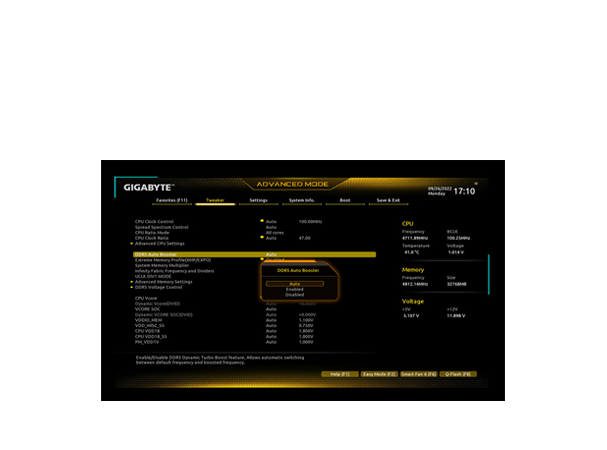

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

EXPO &P Support

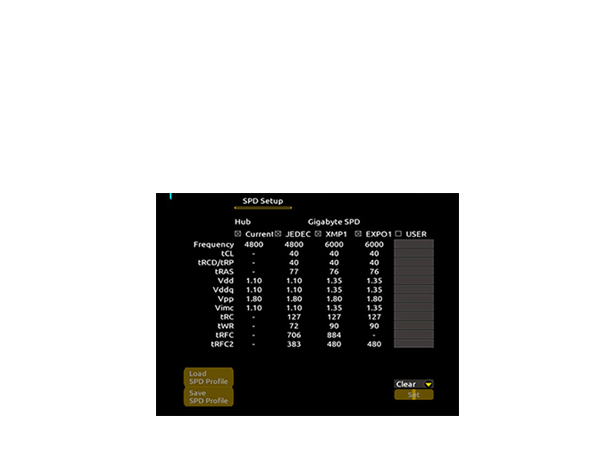

AMD EXPO and Intel XMP 3.0 User Profile
- SPD Re-defined or retrieve from database
- Performance Simulation
- Save/Load Profile
- Overclocked Performance
- Profile Clearance

Define and create your own SPD profile into Native, AMD EXPO and Intel XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.

  • One empty SPD profile can be defined by users and carry to next computer
  • Quick memory performance simulation based on user input clock and timing parameters
  • Profile save and load function to share your memory parameters online

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

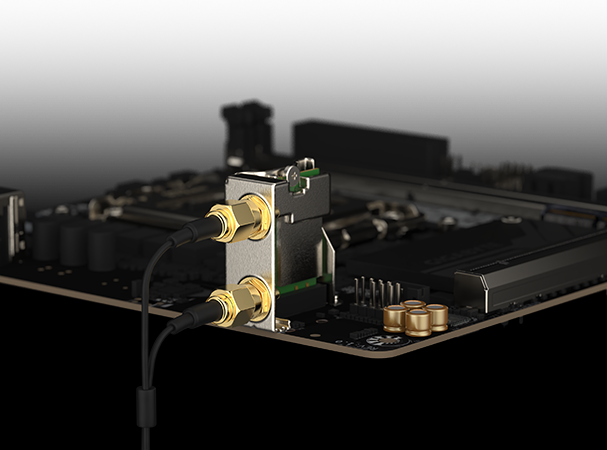

802.11ac Wi-Fi

Faster and Better Coverage with Dual Band 802.11ac Wi-Fi + BT 4.2 Module The onboard 802.11ac Wi-Fi module supports Dual Band and up to 433 Mbps, 3x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 4.2

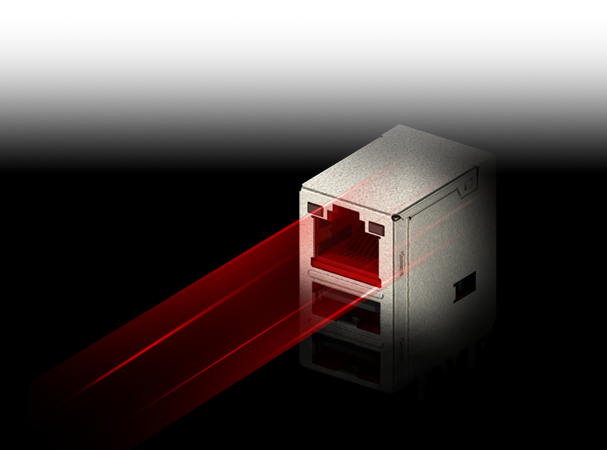

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

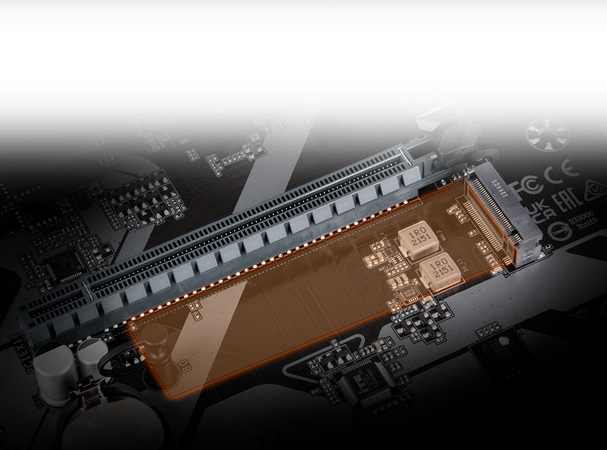

PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&ses the low impedance PCB to provide the maximum performance.

* Photo for reference only.

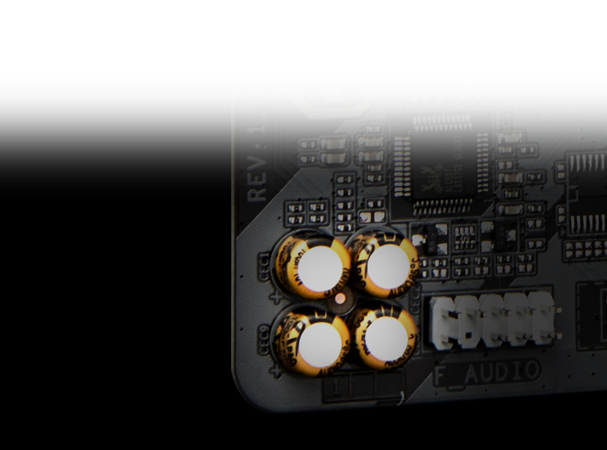

Hi-Fi Audio

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

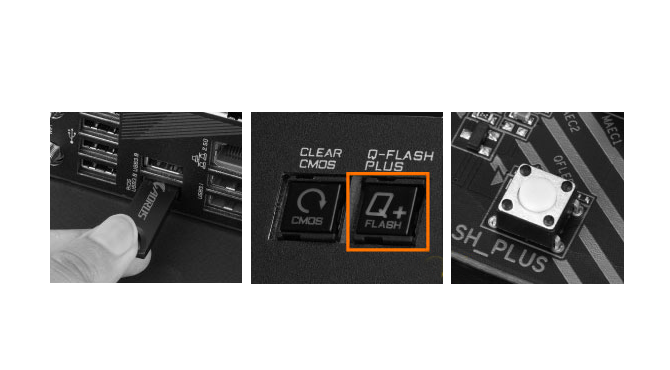

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and youre good to go!

  • STEP 1:Plug 24pin &in power supply cable on motherboard
  • STEP 2:Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
  • STEP 3:Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

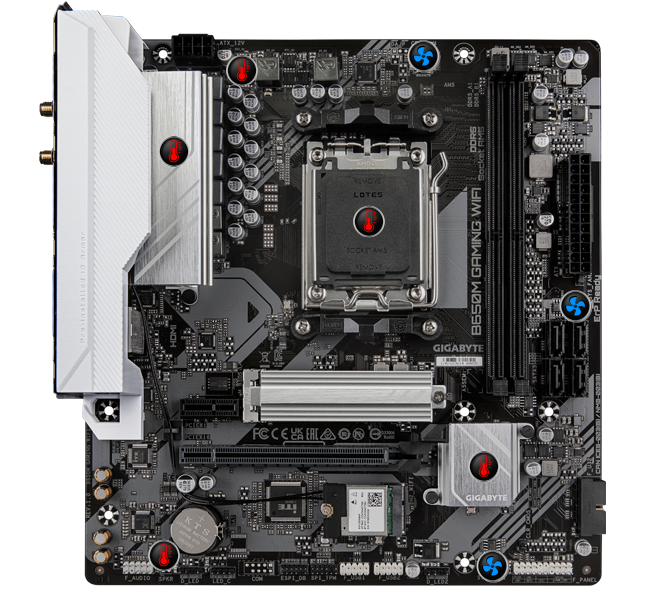

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

    Cooling Features
  • High Current Support:Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
  • Precision Control:Multiple temperature/fan speed control points for precise fan curve
  • Dual Curve Mode:Slope/Stair dual mode for different user scenario
  • Fan Stop:Fan can stop completely below users' specified temperature point

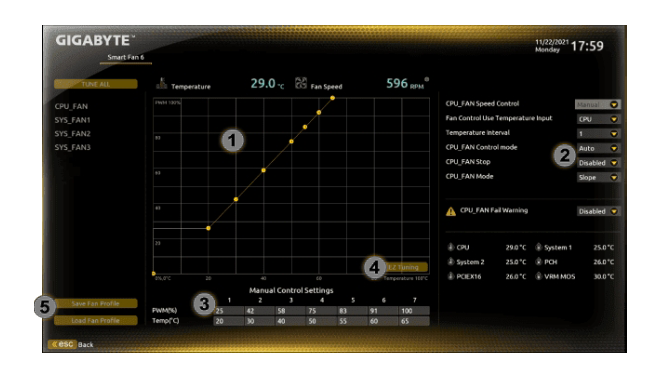

Smart Fan 6 BIOS UI

  1. Improve fan curve UI:We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
  2. Slope/Stair dual graph mode:Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
  3. Manual Input:For advanced users, we provide fan speed manual input for more precise control.
  4. EZ Tuning:Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
  5. Fan curve profile:Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Note: The picture is for reference and may vary by model.

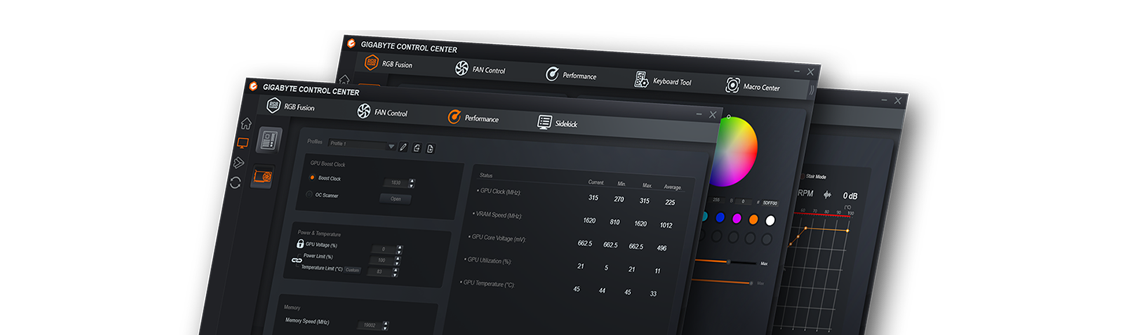

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

  • Unified software platform for all Gigabyte supported products
  • Intuitive user interface for an eased experience
  • Modularized control components only for installed hardware
  • Auto update function to keep system up to date and support future products
LEARN MORE

  • CPU
    AMD Socket AM5, support for:
    AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset
    AMD B650
  • Memory
    Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme
    Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
    - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    - BLUETOOTH 4.2
    - Support for 11ac wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    - 2 x USB 3.2 Gen 1 ports on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 2 x USB 3.2 Gen 1 ports available through the internal USB header
    - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
    the internal USB header)
    Chipset+USB 2.0 Hub:
    - 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable LED strip headers
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x Clear CMOS jumper
  • Back Panel Connectors
    4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x HDMI port
    1 x RJ-45 port
    ? 3 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 24.0cm x 22.5cm
