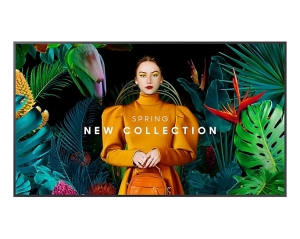

Samsung LH55QBCEBGCXXY Signage Display Digital signage flat

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m Â²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178 Â°
Viewing angle, vertical	178 Â°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	138 cm
Vertical scan range	48 - 75 Hz
Panel type	VA
Horizontal scan range	30 - 81 kHz
Display technology	LED
Colour saturation	72%
Haze rate	2%
RGB colour space	NTSC
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	Yes
USB ports quantity	2
HDMI input ports quantity	3
Design
Product design	Digital signage flat panel
Product colour	Black
Panel mounting interface	200 x 200 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (typical)	154 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Operating system installed	Tizen
Internal memory	8 GB
Operating system version	Tizen 7.0
Weight & dimensions
Display width	1237.9 mm
Display depth	28.5 mm
Display height	708.8 mm
Display weight	15.7 kg
Packaging data
Package width	1403 mm
Package depth	148 mm
Package height	835 mm
Package weight	19.9 kg
Packaging content
Stand included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Stand included	Yes
Panel type	VA
Thin Client
Operating system installed	Tizen
Internal memory	8 GB
Other features
Wi-Fi	Yes
Stand included	Yes
Panel type	VA
Display technology	LED

---

Slim design. Stunning performance.
Introducing QBC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QBC’s efficiency and design innovation.


Maximum impact in minimum space
The QBC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QBC optimizes space with its sleek design that blends seamlessly into your business.


Clean visuals in landscape or portrait mode
Even bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.


Secure and even mounting
Centered VESA Holes
The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.


Lifelike color, born in a pure state with fine crystal
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.


View lifelike shades of color in powerful 4K
Crystal Processor 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.


Connect with convenience
Home UI
QBC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.


Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.


Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards


Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.


Everyday Sustainability
Energy Star / EPEAT*
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.
