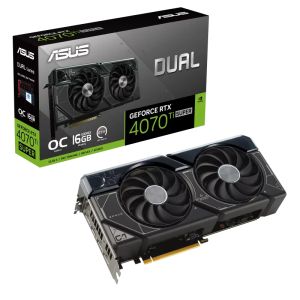

90YV0KF3-M0NA00 | ASUS Dual GeForce RTX 4070 Ti SUPER 16GB GDDR6X

Processor
Graphics processor	GeForce RTX 4070 Ti SUPER
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2625 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8448
Processor frequency (OC mode)	2655 MHz
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6X
Memory bus	256 bit
Data transfer rate	21 Gbit/s
Ports & interfaces
Interface type	PCI Express 4.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Design
Number of fans	2 fan(s)
Cooling type	Active
Number of slots	2.56
Product colour	Black
Cooling technology	ASUS Axial-tech
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Weight	945 g
Width	51.1 mm
Height	133.9 mm
Depth	267 mm
Packaging data
Package type	Box
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	1.75 kg
Manual	Yes
Packaging content
Manual	Yes

---

2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4070 Ti SUPER fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards – including two Axial-tech fans for maximizing airflow to the heatsink – are packed into the 26.7 cm long, 2.56-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.


Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.


0dB Technology
Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.


Dual Ball Fan Bearings
2x longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.


2.56-slot Design
Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.


Dual BIOS
Choose wisely
Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.


Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.


Protective Backplate
That's so metal!
The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.


Stainless Steel Bracket
Steel yourself
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.


GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.


QuantumCloud
Profit from GPU power
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!


144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.


NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.


Further With AI, Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
