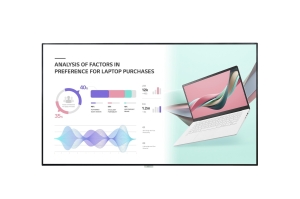

LG 98UH5J-H Signage Display Digital signage flat panel

Display
Display number of colours	1.07 billion colours
Display diagonal	2.49 m (98")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m Â²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178 Â°
Viewing angle, vertical	178 Â°
Panel life	50000 h
LED backlighting type	Direct-LED
Display technology	LCD
Native refresh rate	60 Hz
Haze rate	28%
Ports & interfaces
USB connector type	USB Type-A
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.2/1.4
DVI port	Yes
DVI-D ports quantity	1
Audio (L/R) in	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB ports quantity	1
RS-232C	Yes
DisplayPorts quantity	1
HDMI output ports quantity	1
Audio
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
Panel mounting interface	800 x 400 mm
Bezel width (top)	1.49 cm
Bezel width (side)	1.49 cm
Bezel width (bottom)	1.49 cm
Certification	CB/NRTL, NewErP, FCC Class "A"/CE/KC
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish
On Screen Display (OSD)	Yes
Panel life	50000 h
Wi-Fi	Yes
Power
Heat dissipation	1433 BTU/h
Power consumption (typical)	420 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Computer system
Operating system installed	Web OS
Internal memory	16 GB
Weight & dimensions
Display width	2191.8 mm
Display depth	86.1 mm
Display height	1246.8 mm
Display weight	66 kg
Packaging data
Package width	2342 mm
Package depth	420 mm
Package height	1386 mm
Package weight	99 kg
Remote control included	Yes
Quick start guide	Yes
Cables included	Power
Batteries included	Yes
Packaging content
Remote control included	Yes
Quick start guide	Yes
Cables included	Power
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	CB/NRTL, NewErP, FCC Class "A"/CE/KC
Technical details
VESA mounting	Yes
USB connector type	USB Type-A
LED backlighting type	Direct-LED
Multi-screen (zoom up)	Yes
Thin Client
Operating system installed	Web OS
Internal memory	16 GB
Features
Heat dissipation (max)	1945 BTU/h
Other features
USB connector type	USB Type-A
Wi-Fi	Yes
Quick start guide	Yes
Display technology	LCD
Bezel width (top)	1.49 cm
Bezel width (side)	1.49 cm
Bezel width (bottom)	1.49 cm

---

Appropriate Display Brightness
With a recommend brightness of 500 cd/m Â² for indoor display, the UH5J-H series clearly delivers content and attracts public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls, etc.


High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.


Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.


Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.


IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.


Compatible with AV Control System
The UH5J-H series has supported Crestron Connected Â® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
