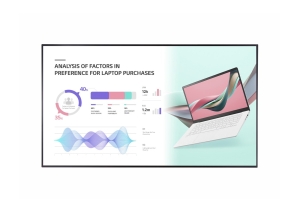

LG 86UH5J-H Signage Display Digital signage flat panel

Display
Display number of colours	1.07 billion colours
Display diagonal	2.18 m (86")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m Â²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1100:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178 Â°
Viewing angle, vertical	178 Â°
Panel life	50000 h
Touchscreen	No
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Display technology	IPS
Native refresh rate	120 Hz
Haze rate	28%
RGB colour space	NTSC
Ports & interfaces
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
HDMI version	2.2/1.4
DVI port	Yes
DVI-D ports quantity	1
Audio (L/R) in	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB version	2.0
USB ports quantity	1
RS-232C	Yes
Infrared data port	Yes
DisplayPorts quantity	1
Audio
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	600 x 400 mm
Bezel width (top)	1.43 cm
Bezel width (side)	1.43 cm
Bezel width (bottom)	1.43 cm
VESA mounting	Yes
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish
On Screen Display (OSD)	Yes
HDCP	Yes
Ambient light sensor	Yes
HDCP version	1.4/2.2
Panel life	50000 h
Wi-Fi	Yes
Power
Heat dissipation	733.69 BTU/h
Power consumption (typical)	215 W
AC input voltage	100 - 240 V
AC input frequency	50-60 Hz
Power consumption (sleep)	0.5 W
Power consumption (off)	0.5 W
Computer system
Operating system installed	Web OS
Internal memory	16 GB
Weight & dimensions
Display width	1926.2 mm
Display depth	60.6 mm
Display height	1097.2 mm
Display weight	49 kg
Packaging data
Package width	2073 mm
Package depth	285 mm
Package height	1250 mm
Package weight	72.5 kg
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Packaging content
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
LED backlighting type	Edge-LED
Ambient light sensor	Yes
Thin Client
Operating system installed	Web OS
Internal memory	16 GB
Features
Heat dissipation (max)	955.5 BTU/h
Other features
Wi-Fi	Yes
Display technology	IPS
Bezel width (top)	1.43 cm
Bezel width (side)	1.43 cm
Bezel width (bottom)	1.43 cm

---

Proper Display Brightness
With a recommend brightness of 500 cd/m Â² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.


High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.


Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.


Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
