All stock codes associated to this product
SRTL8KRM4UI, 5920356, 0731304578499
Power |
---|
Output frequency | 50/60 Hz |
Output power capacity | 8 kVA |
Output power | 8000 W |
Input operation voltage (min) | 220 V |
Input operation voltage (max) | 240 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Surge energy rating | 1410 J |
Emergency Power Off (EPO) | Yes |
Output voltage Total Harmonic Distortion (THD) | 5% |
Crest factor | 3:1 |
Input frequency | 40/70 Hz |
Performance |
---|
Audible alarm modes | Alarm when on battery, Low battery alarm |
UPS topology | Double-conversion (Online) |
Waveform | Sine |
Noise level | 55 dB |
LED indicators | Yes |
Audible alarm(s) | Yes |
Features |
---|
Output frequency | 50/60 Hz |
Audible alarm modes | Alarm when on battery, Low battery alarm |
UPS topology | Double-conversion (Online) |
Output power capacity | 8 kVA |
Output power | 8000 W |
Input operation voltage (min) | 220 V |
Input operation voltage (max) | 240 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Surge energy rating | 1410 J |
Emergency Power Off (EPO) | Yes |
Waveform | Sine |
Output voltage Total Harmonic Distortion (THD) | 5% |
Crest factor | 3:1 |
Noise level | 55 dB |
Audible alarm(s) | Yes |
Input frequency | 40/70 Hz |
Heat dissipation | 1900 BTU/h |
Ports & interfaces |
---|
USB port | Yes |
SmartSlot | Yes |
AC outlets quantity | 12 AC outlet(s) |
AC outlet types | Hard Wire 3-wire (1P + N + E), C13 coupler, C19 coupler, Hardwire |
Power plug | Hardwire |
Battery |
---|
Battery life (max) | 10 year(s) |
Battery technology | Lithium-Ion (Li-Ion) |
Battery recharge time | 1.5 h |
Typical backup time at half load | 15 min |
Typical backup time at full load | 7 min |
Battery voltage | 180 V |
Design |
---|
Rack capacity | 4U |
Form factor | Rackmount/Tower |
Product colour | Grey |
International Protection (IP) code | IP20 |
Certification | EN/IEC 62040-1 IEC 62040-2 |
LED indicators | Yes |
Display type | LCD |
Operational conditions |
---|
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 45 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15240 m |
Technical details |
---|
Output frequency | 50/60 Hz |
Sustainability compliance | Yes |
Sustainability certificates | CE, Green Premium, REACH, RoHS, UKCA, VDE |
Weight & dimensions |
---|
Width | 432 mm |
Depth | 832 mm |
Height | 175 mm |
Weight | 55 kg |
Package width | 650 mm |
Package depth | 1000 mm |
Package height | 630 mm |
Package weight | 88.5 kg |
Packaging data |
---|
Cables included | USB cable |
Package width | 650 mm |
Package depth | 1000 mm |
Package height | 630 mm |
Package weight | 88.5 kg |
Certificates |
---|
Certification | EN/IEC 62040-1 IEC 62040-2 |
Packaging content |
---|
Cables included | USB cable |

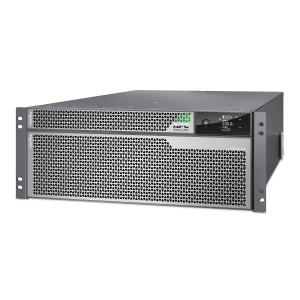

Always stay online and prevent data lossAn APC Smart-UPS Ultra On-Line Li-Ion always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a server, storage or switch. With the integrated network card and associated APC PowerChute Network Shutdown software, the UPS can send a shutdown signal via the network to multiple physical and/or virtual servers and have them shut down automatically and in a controlled manner when the UPS battery is almost empty. This way you prevent data loss, downtime and physical damage to hardware.
UltraThanks to next-gen semiconductor technology, this APC Ultra UPS delivers 8000W in just a 4U form factor.
Lithium-IonThe APC SRTL8KRM4UI uses Li-Ion batteries, which provides unique advantages:
-Longer life span. Li-Ion batteries can last up to 10 years, making the UPS truly maintenance-free.
-Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 30% less than lead acid batteries, saving space, 2U form factor and simplifying installation.
-Better performance at high temperature. Li-Ion batteries perform well at high ambient temperatures (up to 40 °C), in contrast to lead acid batteries where this is at the expense of battery life.
-5 year manufacturer's warranty. Standard long warranty on the UPS including the battery.
-Lower costs: The above benefits reduce the total costs over the entire lifespan of the UPS by up to 53% (compared to a UPS with lead-acid batteries.)
Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.
Extend the runtimeYou can easily increase the number of minutes that the APC SRTL8KRM4UI can independently supply emergency power by connecting up to 9 additional external battery packs (SRTL180RM2UBP). A runtime of several hours is even possible.
Manage your Smart-UPSThanks to the integrated network card, you can easily connect the APC UPS to your network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.
PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.
*An additional license is required for HCI and virtual machine support:
1 year: SWPCNS
1Y-DIGI
Up to (Replace the bold number in the article number for the desired variant)
6 years: SWPCNS
6Y-DIGI
Remote management and monitoring of your networkThe network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.
Support contractThe optional network card support contract license* ensures that you are always up to date and secure and includes additional benefits such as frequent updates with:
• New and improved features
• Security updates
• Advanced support
(The support contract functionality is included free of charge in the first year of the UPS)
*The above license and available in the variants:
1 year: SWNMC3SU-
1Y-DIGI
Up to (Replace the bold number in the article number for the desired variant)
6 years: SWNMC3SU-
6Y-DIGI
AvailabilityThe Smart-UPS On-Line has an internal bypass and uses double conversion, which increases the availability and lifespan of connected hardware.
SafetyIn addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for business use.
Easy to useThe APC Smart-UPS SRTL is easy to operate thanks to a graphic LCD screen with auto-rotation.
Rack/tower convertibleThe APC Smart-UPS SRTL is rack/tower convertible. This means that both the feet and the 4 post rack mounting brackets are included. So you can mount it horizontally in a rack, but also place it upright.
Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.
Green Premium:
- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.
- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/
- Commits minimal use of hazardous substances in and beyond compliance with laws and regulations (RoHS-/REACh)
Certainty in a connected worldOver the past 40 years, 120 million APC UPSs have been installed in more than 160 countries.
Included in the box1x SRTL8KRM4UI
1x C13 to C14 power cord 1.2 meters
1x C13 to C14 power cord 2 meters
1x Installation manual
1x Rack mounting brackets
1x temperature sensor
1x USB cable
