Performance |
---|
Infrared (IR) cut-off filter | Yes |
Number of languages | 20 |
Languages support | English, Spanish, Swedish, Italian, Polish, Thai, Finnish, Japanese, Portuguese, Turkish, Simplified Chinese, French, Traditional Chinese, Korean, Russian, Vietnamese, Czech, German, Dutch |
PTZ modes | Preset point, Digital PTZ |

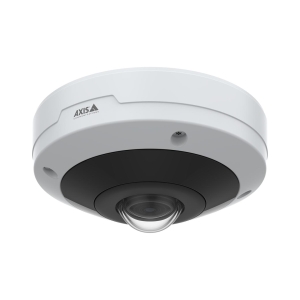

Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
Placement supported | Indoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Certification | CSA, UL/cUL, BIS, UKCA, CE, KC
55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,
EN 61000-6-2, EN 61547
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
Railway: IEC 62236-4
IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3,
IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B) |
Design |
---|
IK code | IK10 |
Form factor | Dome |
Product colour | Black, White |
Mounting type | Ceiling/wall |
LED indicators | Yes |
International Protection (IP) code | IP66 |
Housing material | Aluminium, Polycarbonate (PC) |
Camera |
---|
Minimum illumination | 0.04 lx |
Camera shutter speed | 1/8100 - 1/2 s |
Lens viewing angle, horizontal | 182° |
Lens viewing angle, vertical | 182° |
Progressive scan | Yes |
Image sensor |
---|
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
Number of sensors | 1 |
Lens system |
---|
Number of lenses | 1 |
Fixed focus | Yes |
Fixed focal length | 2.2 mm |
Night vision |
---|
Night vision | Yes |
Night vision distance | 15 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video |
---|
Noise reduction | Yes |
Image quality adjustment | Brightness, Contrast, Sharpness, Saturation |
Text caption overlay | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Noise reduction technology | 2D noise reduction, 3D noise reduction |
Maximum resolution | 2992 x 2992 pixels |
Supported graphics resolutions | 2048 x 1536 (QXGA), 256 x 144, 3840 x 2160, 384 x 288, 2560 x 1920, 2880 x 2880 |
Frame rate | 30 fps |
Video streaming | Yes |
Total megapixels | 12 MP |
Audio |
---|
Audio system | 2-way |
Network |
---|
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3af, IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Streaming method | Multicast |
Ethernet LAN | Yes |
Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
Storage |
---|
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Internal memory | 2048 MB |
Flash memory | 8192 MB |
Ports & interfaces |
---|
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security |
---|
Privacy protection | Yes |
Alert notification type | E-mail |
Video motion detection | Yes |
Security algorithms | TLS, 256-bit AES-XTS, EAP-TLS |
IP address filtering | Yes |
HTTPS encryption | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Pixel counter | Yes |
Human and vehicle targets classification | Yes |
Digest authentication | Yes |
Management features |
---|
Behavior analysis | Line crossing detection |
Power |
---|
Power source type | PoE |
Power consumption (typical) | 6.4 W |
Power consumption (max) | 12.95 W |
Certificates |
---|
Certification | CSA, UL/cUL, BIS, UKCA, CE, KC
55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,
EN 61000-6-2, EN 61547
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
Railway: IEC 62236-4
IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3,
IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B) |
Operational conditions |
---|
Operating temperature (T-T) | -40 - 50 °C |
Storage temperature (T-T) | -40 - 65 °C |
Operating relative humidity (H-H) | 10 - 100% |
Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions |
---|
Width | 149 mm |
Depth | 149 mm |
Height | 70 mm |
Weight | 860 g |
Packaging content |
---|
Number of cameras | 1 |
Manual | Yes |
Technical details |
---|
Sustainability certificates | RoHS |
Doesn't contain | PVC/BFR |
