All stock codes associated to this product
KRYM-USBHUB7P-I-U31G2, KRYMUSBHUB7PIU31G2

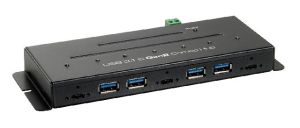

Krysma 7 Port Industrial USB 3.1 Gen 2 Hub
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection and strength. It’s ideal for use in factories, warehouses and other industrial applications.
This industrial USB 3.1 hub support speed up to 10Gbps. It comes with 3x USB 3.1 C Gen 2 type C port + 4x USB 3.1 Gen 2 type A receptacle port. The USB type C upstream/downstream port with Locking Screw Points for secured-mount. Each port features individual ESD Surge Protection.
Specifications:
- Interface: 1x USB Type C (Upstream) to 4x USB Type A and 3x USB Type C (Downstream)
- Compliant with USB 3.1 Gen 2 Type C Rev 1.2 specifications and backwards compatible with USB 2.0/1.1/1.0
- Supports
simultaneous USB 3.1 GEN2 Super Speed Plus (10Gbps), USB 3.0 Super
speed (5Gbps), USB 2.0 high speed (480Mbps), USB 1.1 full speed (12Mbps)
and low speed (1.5Mbps) devices
- 3-Port Type C and 4-Port TYPE A Supports Battery Charging v1.2
- DC Jack with Locking Screw
- Power Input: DC DIM with screw or plug-in DC power adapter
- Shielded metallic construction
- Over current detection and protection (Support 15KV ESD Surge Protection)
- LEDs indicated power adapter and devices connection status
- Integrated brackets for mounting (screws not included)
- Type C receptacle with Locking Screw Points and 0.6m Type C to Type C cable included
- Temperature Range: 0° – 70° C (operating), -25° – 85°C (storage)
- Humidity: max. 80% (operating), max. 95% (storage)
- Dimensions: 182.8 x 65.5 x 22mm (WxDxH)
- Compatible with Windows 10/8/7, Mac OS 10.7 (or above) and Linux.
Package Contents
- 1x 7 Port Industrial USB 3.1 Gen 2 Hub
- 1x USB 3.1 Gen2 type C cable (60cm)
- 1x 16V DC 2A Power Adapter
- 1x User Manual
