All stock codes associated to this product
KRYM-4PMS-HDMI-SW, KRYM4PMSHDMISW
Krysma

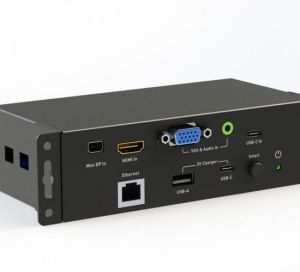

4-port Multi A/V to HDMI Presentation Switch features a concealed,
in-table design that lets you connect VGA, Mini DisplayPort, HDMI or USB
Type C video source device to an HDMI TV or projector. It can also be
used as a desktop unit.
This switch features with USB charging
ports to charge your mobile device and an Ethernet pass-through port for
Internet connectivity in boardrooms where WiFi is not available. This
switch is suitable for integrating multiple video sources to a HDMI
display in a meeting room, conference room, classroom, lecture hall or
auditorium.
- Solution for integrating multiple devices in to meeting/conference/class room or auditorium
- Convert multiple analogue &digital inputs to a HDMI output
- Features VGA &Audio, Mini DisplayPort, USB Type C and HDMI inputs
- USB (Type A &Type C) charging and Ethernet pass-through ports
- Power Adapter with screw-lock connector
Specifications:
Inputs
- HDMI A Female
- Mini DisplayPort Female
- VGA 15 Pin Female
- 3.5mm Audio Female
- USB Type C DP Alt
- RJ45 Female Ethernet (Pass-through)
Outputs
- HDMI A Female
- RJ45 Female Ethernet (Pass-through)
- USB Type A &Type C Female (5V 1.5A Power Only)
- Support Ethernet Bypass Function
- Source Auto Detect Function
- Maximum Analogue Video Input: 1920×1080 60Hz
- Maximum Digital Video Input: 4Kx2K @ 60Hz
- Analogue Audio Support: 2 Channel Stereo (3.5mm)
- Digital Audio Support: up to 7.1 Channel Surround Sound (HDMI, Mini DisplayPort, USB Type C)
- Dimensions: 14x9x5cm
- Weight: 0.600kg (approx)
Package Contents
- Multi AV Input to HDMI Presentation Switch
- 2x Installation Bracket
- 2x Desk Mount Hooks
- 24V 1.5A Power Adapter (w/ screw-lock connector)
- User Manual
