Introducing
the latest USB 3.2 Gen 1 Industrial 4-port CAT6A Extender Kit, a
cutting-edge solution that supports the USB 3.2 Gen 1 standard at 5Gbps
data transfer rate. Its designed to be fully backward compatible with
USB 3.0, USB 2.0, and USB 1.1 specifications.

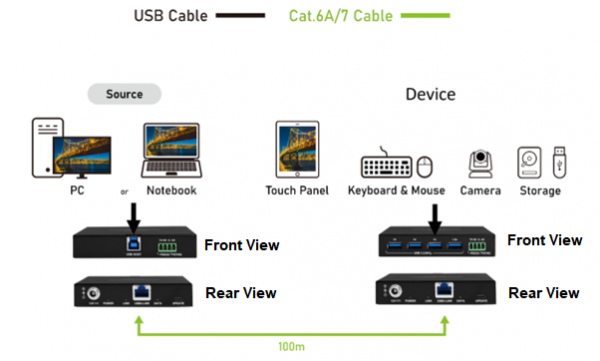

Extend your USB 3.2
Gen 1 data transmission up to 100 meters using a CAT 6A (or CAT 7)
cable. Plus, the receiver (RX) unit comes equipped with a built-in
4-port USB hub, enabling seamless connectivity for multiple USB
devices.
Leveraging advanced data transmission technology, this extender ensures reliable performance in various USB device scenarios.
Application
1. Consumer: personal, USB extension, VR.
2. Commercial: surveillance, industrial cameras
3. Conference and Education: Conference room or classroom.
Specifications:
- Slim profile, easy to install anywhere
- Support USB 3.2 Gen 1 standard, and backward compatible with USB 3.0, USB 2.0, and USB1.1 standard
- Supports up to 5Gbit/s data transfer rate
- Support up to 100m transmission via cat6A/7 F/FTP or U/UFTP cable.
- 100m over Cat6A / 7 F/FTP or U/FTP cable.
(Note, please do not use UTP, F/UTP or U/UTP cables) - Pure hardware architecture is compatible with Control/Bulk/Interrupt/Isochronous transmission protocols
- Provide four USB 3.2 &3.0 device ports on RX, including one 1.5A port for connecting high-power USB devices
- Supports RS232 pass-through for industry camera control
- Plug and play, no driver required, compatible with multiple operating systems
- Support FW update via micro-USB
- TX supports powered by USB host, RX supports powered by local power adapter
- Temperature Range: 0° – 45° C (operating), -20° – 70°C (storage)
- Humidity: max. 90% (operating), max. 95% (storage), non-condensing
- ESD Protection
- Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Transmitter
- Ports: RJ45 Female, 1x USB 3.2 Gen 1 Type B Female, DC Power Input, 4-Pin Euroblock RS-232
- Dimensions (WxDxH): 105x100x21mm

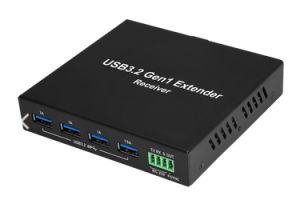

Receiver
- Ports: RJ45 Female, 4x USB 3.2 Gen 1 Type A Female, DC Power Input, 4-Pin Euroblock RS-232
- Dimensions (WxDxH): 105x100x21mm
Package Contents
- 1x USB 3.2 Gen 1 Industrial 4-Port CAT6A Extender Kit 100M
- 1x 12V DC 3A Power Adapter
- 1x User Manual
