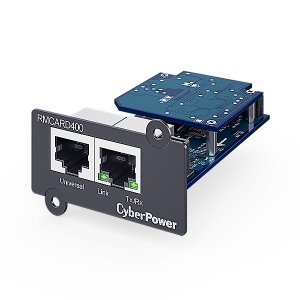

CyberPower RMCARD400 network card Internal Ethernet 1000 Mbit/s

Ports & interfaces
Internal	Yes
Connectivity technology	Wired
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Network
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1x
Supported network protocols	TCP/IP, UDP, FTP, SCP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, Syslog
Design
Internal	Yes
Certification	CE, FCC Class A, RoHS
LED indicators	Link, TX / RX
Component for	Uninterruptible power supply (UPS)
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-10 - 50  Â°C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Sustainability
Sustainability compliance	Yes
Sustainability certificates	Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	54 mm
Depth	76 mm
Height	36 mm
Weight	40 g
Package width	60 mm
Package depth	170 mm
Package height	165 mm
Package weight	300 g
Protocols
Supported network protocols	TCP/IP, UDP, FTP, SCP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, Syslog
Packaging data
Package width	60 mm
Package depth	170 mm
Package height	165 mm
Package weight	300 g
Technical details
Sustainability compliance	Yes
Sustainability certificates	Federal Communications Commission (FCC), RoHS
Compliance certificates	Federal Communications Commission (FCC), RoHS
Certificates
Certification	CE, FCC Class A, RoHS

---

A full-featured network management card, the CyberPower RMCARD400 Gigabit SNMP card remotely manages, monitors and controls select CyberPower UPS systems via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD400 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel Â® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.

An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD400 to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD400 to send a predefined notifications. The RMCARD400 comes with a three-year warranty.
