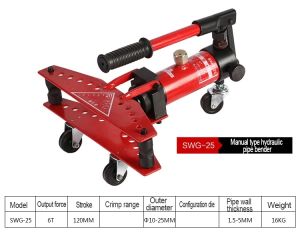

SWG-25 Hydraulic Pipe Bender 1/4" to 1"
Hydraulic pipe bender, which is easy to use and effortless!
Suitable for pipe diameter 10-25mm, wall thickness 1.5-5mm.
The tube is not deformed, up to 90 degrees.
Model: SWG-25
Name: Integral hydraulic pipe bender
Output: 6T
Stroke: 120mm
Outer diameter: F10mm-F25mm
Pipe wall thickness: 1.5-3.5mm
Configuration mold: F10, F13, F16, F19, F22, F25
Weight: 16kg
Scope of application:
suitable for general water pipes, conduits, gas pipes, steel pipes, etc., with a maximum angle of 90 degrees.
The molds are made of nodular cast iron, which has higher strength, better toughness and plasticity than ordinary gray cast iron, and is more durable and not easy to break.
Configuration Anvil: 1/4", 5/16", 3/8", 1/2", 3/4", 1"
Corresponding diameter:Ø13,Ø16,Ø19,Ø22,Ø28,Ø34
