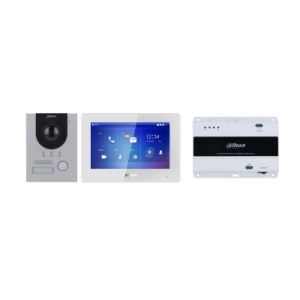

Dahua Technology DHI-KTD01L(S) video intercom system 2 MP 17.8 cm (7")

Technical details
International Protection (IP) code	IP65
IK code	IK07
Colour	Yes
Number of displays supported	1
Maximum number of cameras supported	1
Connectivity technology	Wired
Display
Display technology	TFT
Display resolution	1024 x 600 pixels
Touchscreen type	Capacitive
Touchscreen	Yes
Display diagonal	17.8 cm (7")
Design
International Protection (IP) code	IP65
Proper use	Indoor & outdoor
IK code	IK07
Outdoor unit housing material	Aluminium
Product colour	Aluminium, White
Control type	Buttons, Touch
Network
Power over Ethernet (PoE)	Yes
Supported network protocols	RTSP;RTMP;HTTP/HTTPS;DNS; UPnP;RTP;SIP;SSH; ONVIF ;P2P
Camera
Viewing angle, vertical	87.1 Â°
Viewing angle, horizontal	160 Â°
Megapixel (approx.)	2 MP
Maximum image resolution	1280 x 720 pixels
Maximum frame rate	30 fps
Field of view (FOV) angle	176.7 Â°
Sensor type	CMOS
Optical sensor size	25.4 / 2.5 mm (1 / 2.5")
Power
Indoor unit power type	DC
Outdoor unit power type	DC
Operational conditions
Door station operating temperature (T-T)	-30 - 60  Â°C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Mounting kit	Yes
Indoor unit included	Yes
Outdoor unit included	Yes

---

2-wire IP Villa Door Station
- Anodized alumimum front panel
- CMOS low ilumination 2MP HD colorful 160 Â° fisheye camera
- Video intercom function
- Access control function that supports for two locks
- Use the app to talk to visitors or unlock the door remotely on your
- Compatible with 2-wire and RJ45 interfaces
- IK07 & IP65
- Supports H.265 incoding
- Support surface and flush mount
- PoE


IP Indoor Monitor
- 2.5D screen glass
- 7" TFT capacitive touch screen
- 6-channel alarm input and 1-channel alarm output
- Supports standard PoE or power over 2-wire switch
- H.265 video coding (H.264 by default)
- Supports 2-wire digital communication
- Supports daisy chain topology


2-wire Switch
- Supports connecting through RJ45 port
- Supports guide rail mount
