All stock codes associated to this product
1005006980770177

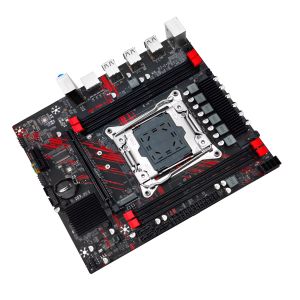

The motherboard only supports these processors LGA2011-3 pin CPU, 2649 V3, 2669 V3, 2666 V3, 2673 V3, 2676 V3, 2678 V3, 2696 V3.
Brand: MACHINIST;
Chipset model: Intel HM55
Memory technology: Desktop DDR3, Server DDR3 ECC, DDR3 RECC, support dual channel. Maximum capacity 128GB. Desktop memory and server memory cannot be used at the same time. (Please use international brands such as Samsung, Kingston, Micron, Hynix, etc. Other brands may not be compatible)
Network card model: Realtek 8111H Gigabit
Sound card model: Realtek ALC897 2.1 channel
Support SATA M.2, NVME M.2 (PCIe 3.0 x4, maximum read and write speed 3600M/S), sata 2.5-inch SSD, sata 3.5-inch mechanical disk
>>Rear input/output:
USB interface: 6 USB 2.0;
Audio: 3-hole audio interface;
Ethernet: 1 Realtek Gigabit network card;
PS/2: 1 KB interface and 1 MS interface;
>>Internal connector
PCIe: 1 PCIe3.0 x16.1 PCIe2.0 x1);
SATA interface: 3 (3 SATA2.0);
1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;
JAudio: 1 2x5Pin pin;
M.2 interface: 1 (SATA and NVME switch).
Size: 215mm*190mm
Motherboard weight: about 0.9kg.
Overclocking: not supported
RAID: not supported
M.2 mode switch: supported, factory default is NVME M.2
Startup option shortcut key: f7
