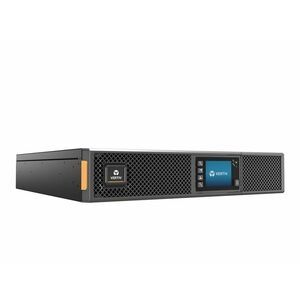

Vertiv Edge UPS 22000IRT2UXL, 2200VA 1980W 230V Line Interactive AVR, 2U Tower, Rack-Mountable, 6x IEC 60320 C13, 1x IEC 60320 C19, Single Phase

Our Price:

$2,101.75

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

546075

(?) Brand:

Vertiv

Manuf No:

1202572

Shipping Weight:

27 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

1202572, 31VEDGE22000IRT2UXL, 31VEDGE-22000IRT2UXL

Vertiv EDGE-2200IRT2UXL UPS is a 2200VA / 1980W / 230V line interactive UPS in a 2U tower/rack mount form factor with high 0.9 PF. This variant is equipped with a rotatable LCD monitor, advanced AVR for a more stable output voltage regulation and 6 total outlets with 3 programmable ones that can prioritize critical loads. Has a feature to add communication card to manage devices remotely.

High output PF=0.9 to maximize available power and protect more equipment
High efficiency, up to 98% in line mode, to deliver energy savings
1U, 2U, 3U, tower, rack/tower form factors, with power ratings from 500VA to 3000VA, to address a broad range of power requirements
Advanced AVR protection with 2x boost and 1x buck tap to protect the battery by smoothing out spikes, sags and brownouts
Color graphic LCD display
Add up to 6 extended run battery cabinets to increase runtime
External battery cabinets with auto-detection
Rack/tower 3kVA model with short depth for flexible installation
"Green mode" operation: in battery mode with small loads, the UPS will automatically shut down to protect batteries, optimize energy savings
Programmable outlets to disable non-critical loads, optimize battery runtime
Input breaker device for additional protection to the load in worst case failures
Smart fan speed control for lower audible noise
Remote connectivity via network interface or serial connection to monitor power consumption and configure user-defined alert notifications to prevent downtime
Extend battery life with deep discharge protection
RoHS and REACH compliant

Model Number	EDGE-2200IRT2UXL
Capacity VA	1980W/2200VA
Topology	Line-interactive
Sine Wave	Pure Sinewave
Form Factor	Rack / Tower
Active Cooling	No
SNMP Compatible	Yes
Hard-Line	No
Hot Swappable Batteries	Yes
Australian Outlets - Surge Protection	Single Phase
Expandable Batteries	Yes
IEC 13 Count	6
Australian Outlets - UPS	0
IEC 19 Count	1
Voltage Range	166-278Vac
Voltage	230Vac
Frequency Range	45/65Hz (Auto sensing)
Output Voltage	200-240Vac
Battery Type	Valve-regulated, Non-spillable, Lead acid
Phase Count	Single Phase
Surge Protection	624 Joules
Interface	USB interface
Software	Vertiv Power
LCD Alarm	AC Mode, Battery Mode, Low Battery, Fault, Overload
Audible Alarm	Batt. Mode, low battery, overload, fault, etc.
Operating Temperature Range	0-40 C
Noise Level	Less than 45dB AVR mode
Dimensions	438mm x 630mm x 86mm
Weight	27kg
Warranty	3 Years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
