All stock codes associated to this product
MDP2DVID2, 4466123, 0065030880114
| Features |
|---|
| DisplayPort version | 1.2 |
| Chipset | Synaptics VMM2320 |
| Cable length | 0.358 m |
| Connector 1 | Mini DisplayPort + USB Type-A |
| Connector 2 | DVI-I |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Maximum resolution | 2560 x 1600 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA) |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 144 Hz |
| Power source | USB |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Other features |
|---|
| Width | 63.9 mm |
| Height | 23 mm |
| Depth | 93.2 mm |
| Weight & dimensions |
|---|
| Weight | 118 g |
| Package width | 145 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 169 g |
| Width | 63.9 mm |
| Height | 23 mm |
| Depth | 93.2 mm |
| Packaging data |
|---|
| Package width | 145 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 169 g |
| Technical details |
|---|
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code | 84733080 |
Mini DisplayPort™ Video Adapter | Dual-Link Connectivity | 1 x USB-A

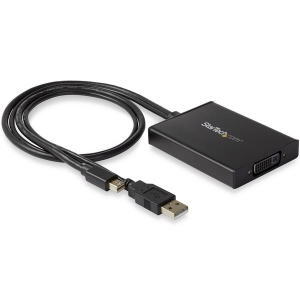

This Mini DisplayPort to Dual-Link DVI adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook ® or Microsoft ® Surface™ Pro devices with mDP) to any DVI display, including televisions, saving the cost of upgrading to a Mini DisplayPort capable monitor.
Maximum Portability
With its compact, lightweight design, the Mini DisplayPort to DVI-D Adapter offers a convenient travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this monitor adapter perfect for BYOD (Bring Your Own Device) applications at the office.
As well, the DVI converter is powered by a single USB port, eliminating the need for additional cords or chargers.
Uncompromised Quality and Convenience
The Mini DisplayPort to DVI adapter offers an active conversion and can handle full dual-link resolutions (up to 2560 x 1600) with the ability to mirror your display or extend your desktop to increase your workspace. The adapter supports plug-and-play connectivity, ensuring a hassle-free setup.
MDP2DVID2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
