All stock codes associated to this product
CDP2DVIUCP, 3741302, 0065030872188
| Performance |
|---|
| USB connector form factor | Straight |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Chipset | Parade - PS171, VIA/VLI - VL100 |
| DVI output | Yes |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| DVI connector type | DVI-I |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Certification | CE, FCC, REACH |
| Design |
|---|
| Product colour | Black |
| Integrated USB cable | Yes |
| USB cable length | 0.1 m |
| Weight & dimensions |
|---|
| Width | 40 mm |
| Depth | 58 mm |
| Height | 13 mm |
| Weight | 32 g |
| USB cable length | 0.1 m |
| Package width | 145 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging data |
|---|
| Package width | 145 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Technical details |
|---|
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Logistics data |
|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 750 mm |
| Master (outer) case height | 315 mm |
| Harmonized System (HS) code | 84733020 |

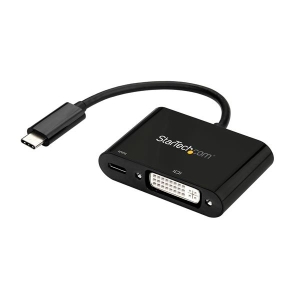

Use this USB Type C adapter to output DVI video and charge your laptop using a single USB C port
This USB-C™ to DVI adapter lets you connect a USB-C laptop, such as an Ultrabook™ or MacBook Pro, to a DVI display. The video adapter features USB Power Delivery, which enables you to power and charge your laptop while you're outputting video to a DVI display.
USB Type-C™ is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the latest MacBook or Windows ® laptops. It's also compatible with Thunderbolt™ 3 ports.
Charge your device at the same time
Unlike some video adapters that use up one of your laptop’s USB-C ports to output video, this video adapter offers an additional USB-C charge port that supports USB Power Delivery up to 60 watts. This means you can charge your laptop and output video using the same laptop port, by simply connecting the laptop’s power adapter to the additional USB-C port on the adapter. It’s the perfect solution for laptops that have only a limited number of USB-C ports.
Take it with you
This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. It’s the perfect accessory to carry with your device, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Connect quickly
This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device when you're trying to deliver a presentation or sharing information.
The CDP2DVIUCP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
