ASUS B760M-AYW WIFI D4//LGA1700,B760,USB3.2 GEN 1,MB

Our Price:

$208.20

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

547451

(?) Brand:

ASUS Web Site

Manuf No:

90MB1EA0-M1UAY0
90MB1EA0M1UAY0

Shipping Weight:

0.48 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

90MB1EA0-M1UAY0, 90MB1EA0M1UAY0, B760MAYWWIFID4, B760M-AYW-WIFI-D4

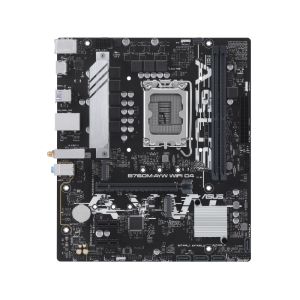

ASUS B760M-AYW WIFI D4, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, WiFi 6, HDMI, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet , WiFi 6 and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardwares

Specifications

Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Chipset	Intel B760 Chipset
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
I/O Connectors	Back Panel I/O Ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port; Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Integrated CPU Graphics	1 x HDMI port
LAN	1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
PCI Slots	Intel Core Processors (14th &13th &12th Gen): 1 x PCIe 4.0 x16 slot; Intel B760 Chipset: 2 x PCIe 4.0 x1 slots
Processor Support	Intel Socket LGA1700 for Intel Core 14th &13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAM Type/Bus/Max	2 x DIMM, Max. 64GB, DDR4; 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
Socket	Intel Socket LGA1700 for Intel Core 14th &13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Storage Interface	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty
Weight
Wireless &Bluetooth	Wi-Fi 6, Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
