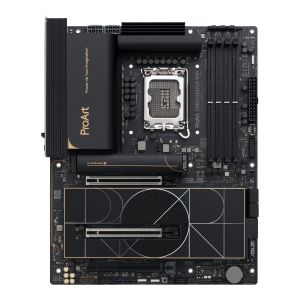

ProArt logoZ890-Creator WiFi

The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest IntelCore Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe5.0 and lightning-fast connectivity including dual Thunderbolt 5 ports, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

Model
ProArt Z890-CREATOR WIFI
News &pdates
2024/10/24: A new BIOS has been released addressing various bugs, including no display from the graphics card when installing Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.

Please visit ourGLOBAL websiteto check and download the latest updates.
CPU
Support IntelCore Ultra Processors (Series 2), LGA1851
Supports IntelTurbo Boost Technology 2.0 and IntelTurbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
IntelZ890 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports IntelExtreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Support DIMM Fit
Support DIMM Flex
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x HDMI port**
2 x IntelThunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***
1 x IntelThunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.
*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.
*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM5 bandwidth is limited by DisplayPort 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt cables.
**** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.In DP alt mode, supports up to UHBR20.
***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
IntelCore Ultra Processors (Series 2) *
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
IntelZ890 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
IntelCore Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
IntelZ890 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 &ATA modes)**
4 x SATA 6Gb/s ports
* IntelRapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
Ethernet
1 x MarvellAQtion 10Gb Ethernet
1 x Intel2.5Gb Ethernet
ASUS LANGuard
Wireless &luetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetoothv5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetoothversion may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
2 x Thunderbolt 5 ports (2 x USB Type-C)
1 x Thunderbolt 4 port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A )
1 x USB 2.0 port (1 x Type-A )
Front USB (Total 5 ports)
1 x USB 20Gbps (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-Cpower delivery output: max. 5V/3A
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*Audio Features
- Gold-plated audio jacks
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x Thunderbolt 5 USB Type-Cports
1 x Thunderbolt 4 USB Type-Cport
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi module1 x MarvellAQtion 10Gb Ethernet port
1 x Intel2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Special Features
ASUS 5X PROTECTION III /
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUSQ-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Box headers
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Bespoke Motherboard Design &usiness Focused Features
- 24/7 reliability- Overcurrent protection
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS Driver Hub
ASUS GlideX
ASUS CPU-Z
CreatonFirst
ProArt Creator Hub
TurboV Core
Thunderbolt Share
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch packages
2 x M.2 rubber packages
1 x ProArt accessory bag
Documentation
1 x ACC Express activation key card
1 x Quick start guide
Operating System
Windows 11 (22H2 &ater)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
