AXIS TP3301-E Mount, Pole Mount, 15kg Capacity, Aluminium, Black

IMG 1 of 1
Our Price:
$283.80
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
547555
(?) Brand:
AXIS
Manuf No:
02961-001
02961001
Shipping Weight:
1.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
02961-001, 02961001, 7331021086845

Axis TP3301-E Mount

Manufacturer: Axis
Category: Home
Sub-Category: Security Camera Accessories
SKU: 02961-001
EAN: 7331021086845

Description

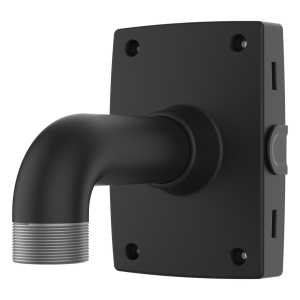

AXIS TP3301-E Pole Mount Black

The outdoor-ready AXIS TP3301-E Pole Mount Black has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS TP3301-E is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.

Specifications

Features
Housing materialAluminium
Brand compatibilityAxis
TypeMount
Placement supportedUniversal
CompatibilityAXIS P32/P37/Q35/Q36 (requires camera-specific pendant kit)
Product colourBlack
CertificationIEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, IEC 62262 IK10
IK codeIK10
Maximum weight capacity15 kg
Ergonomics
Maximum weight capacity15 kg
Technical details
TypeMount
Placement supportedUniversal
Maximum weight capacity15 kg
CompatibilityAXIS P32/P37/Q35/Q36 (requires camera-specific pendant kit)
Doesn't containPVC
Weight & dimensions
Width138.3 mm
Weight1.2 kg
Height194.8 mm
Depth244.1 mm
Colour
Product colourBlack
Packaging content
Quick installation guideYes
Certificates
CertificationIEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, IEC 62262 IK10
