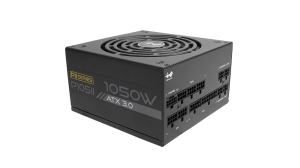

IN WIN IW-PS-PII1050W power supply unit 1050 W 24-pin ATX ATX Black, ATX12V V3.0, 100-240Vac, 15-8A, 50-60Hz, 80 PLUS Platinum, < 25 dB(A), 150 x 150 x 86 mm

IMG 1 of 1
Our Price:
$268.95
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
547698
(?) Brand:
IN WIN
Manuf No:
IW-PS-PII1050W
IWPSPII1050W
Shipping Weight:
3.28 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
IW-PS-PII1050W, IWPSPII1050W, 5871718, PSIWPII1050W, PS-IW-PII1050W

In Win IW-PS-PII1050W power supply unit 1050 W 24-pin ATX ATX Black

Manufacturer: IN WIN
Category: Batteries & Power Supplies
Sub-Category: Power Supply Units
SKU: IW-PS-PII1050W
EAN:

Description

P105II 1050W Fully Modular Power Supply - 80 PLUS Platinum - 10 Year Warranty

Specifications

Cooling
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan locationTop
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
PurposePC
ATX version3.0
Noise level25 dB
Bearing technologyFDB
Mean time between failures (MTBF)100000 h
Design
80 PLUS certification80 PLUS Platinum
Product colourBlack
Fan diameter13.5 cm
On/off switchYes
Number of fans1 fan(s)
Fan locationTop
Cooling typeActive
Power
Total power1050 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current15-8 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)1050 W
Combined power (+5V)120 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V)0.5 A
Max output current (+5V)24 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Power protection featuresOver power, Overheating, Over voltage, Under voltage, Over current, Short circuit
Efficiency92%
Ports & interfaces
Motherboard power connector24-pin ATX
Number of SATA power connectors9
Peripheral (Molex) power connectors (4-pin)3
PCI Express power connectors (6+2 pin)6
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeFully-Modular
Operational conditions
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Width150 mm
Depth150 mm
Height86 mm
Weight2.6 kg
Packaging data
Package width355 mm
Package depth210 mm
Package height105 mm
Package weight3.2 kg
Technical details
Sustainability complianceYes
Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, UKCA
Certificates
80 PLUS certification80 PLUS Platinum
