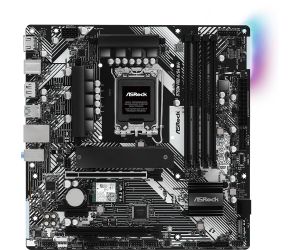

Asrock B760M PRO-A/D4 WIFI

B760M Pro-A/D4 WiFi

• Unique Feature
  Rock-Solid Durability
  - 7+1+1 Power Phase, Dr.MOS for VCore+GT
  -ASRock Intel4-Layer Memory POOL (Planes on Outer Layers) Technology
  Ultrafast Connectivity
  - 2.5G LAN, Killer 802.11axe Wi-Fi 6E Module
  EZ Update
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  -ASRock Post Status Checker
• CPU
  - Supports 14^th, 13^th&12^thGen IntelCore Processors (LGA1700)
  - Supports IntelHybrid Technology
  - Supports IntelTurbo Boost Max 3.0 Technology
  - Supports IntelThermal Velocity Boost (TVB)
  - Supports IntelAdaptive Boost Technology (ABT)
• Chipset
  - IntelB760
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 128GB**
  - Supports IntelExtreme Memory Profile (XMP) 2.0



  *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows32-bit OS. For Windows64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  *IntelUHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  - IntelXe Graphics Architecture (Gen 12)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



  *
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control
• Wireless LAN
  - 802.11axe Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax/axe
  - Supports Dual-Band 2x2 160MHz with extended 6GHz band*support
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.3 + High speed class II
  - Supports MU-MIMO
  - Supports Killer LAN Software



  *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through WindowsUpdate and software updates once available.
  A 6GHz compatible router is required for 6E functionality.
• Slots
  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
  - 1 x PCIe 4.0 x1 Slot (PCIE2)*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and IntelCNVio/CNVio2 (Integrated WiFi/BT)
  - Supports AMD CrossFire



  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 4 x SATA3 6.0 Gb/s Connectors



  *Supports IntelVolume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
  Chipset:
  - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)
  *All USB ports support ESD Protection



  *
• Connector
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen1 Header



  *Supports in total up to 12V/3A, 36W LED Strip
  **Support in total up to 5V/3A, 15W LED Strip
  ***CPU_FAN1 supports the fan power up to 1A (12W).
  ****CPU_FAN2/WP supports the fan power up to 2A (24W).
  *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
  *****CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen1 Type-C Port
  - 3 x USB 3.2 Gen1 Type-A Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Dragon 2.5G LAN Software
  - Killer Control Center
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update &APP Shop.
• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 2 x SMA WiFi Antenna Cables
  - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  - 1 x Plastic Cover for Wi-Fi Module
  - 2 x Screws for M.2 Sockets
  - 1 x Standoff for M.2 Socket
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS
  - Microsoft Windows10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
