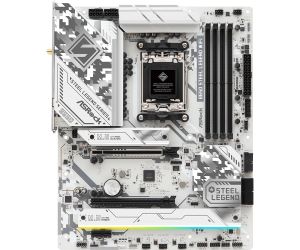

Asrock B650 Steel Legend WiFi AMD B650 Socket AM5 ATX

Manufacturer: ASROCK
Category: Computer Components
Sub-Category: Motherboards
SKU: B650 STEEL LEGEND WIFI
EAN: 4710483944598

Description

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

14+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

20K Capacitor
20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.

8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

AMD PBO Technology
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Specifications

Internal I/O
Number of M.2 (M) slots3
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
TPM connectorYes
Number of SATA III connectors4
Front panel audio connectorYes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Performance
Supported storage drive typesHDD & SSD
Component forPC
Motherboard chipset familyAMD
Motherboard chipsetAMD B650
Motherboard form factorATX
Audio output channels7.1 channels
RAID levels0, 1, 10
Processor
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 7000 Series
Processor socketSocket AM5
Maximum number of SMP processors1
Memory
Number of memory slots4
Supported memory typesDDR5-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
Maximum internal memory192 GB
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 10
RAID supportYes
Graphics
On-board graphics cardYes
Graphics card familyAMD
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
DisplayPort version1.4
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
S/PDIF out portYes
Microphone inYes
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Network
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
LAN controllerDragon RTL8125BG
Ethernet interface type2.5 Gigabit Ethernet
BluetoothYes
Bluetooth version5.2
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Features
Component forPC
Motherboard chipset familyAMD
Motherboard chipsetAMD B650
Motherboard form factorATX
Audio output channels7.1 channels
Audio chipRealtek ALC4082
Expansion slots
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
BIOS
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Weight & dimensions
Width305 mm
Depth244 mm
Packaging content
Cables includedSATA
Screws includedYes
Other features
PCI Express x1 (Gen 4.x) slots1
